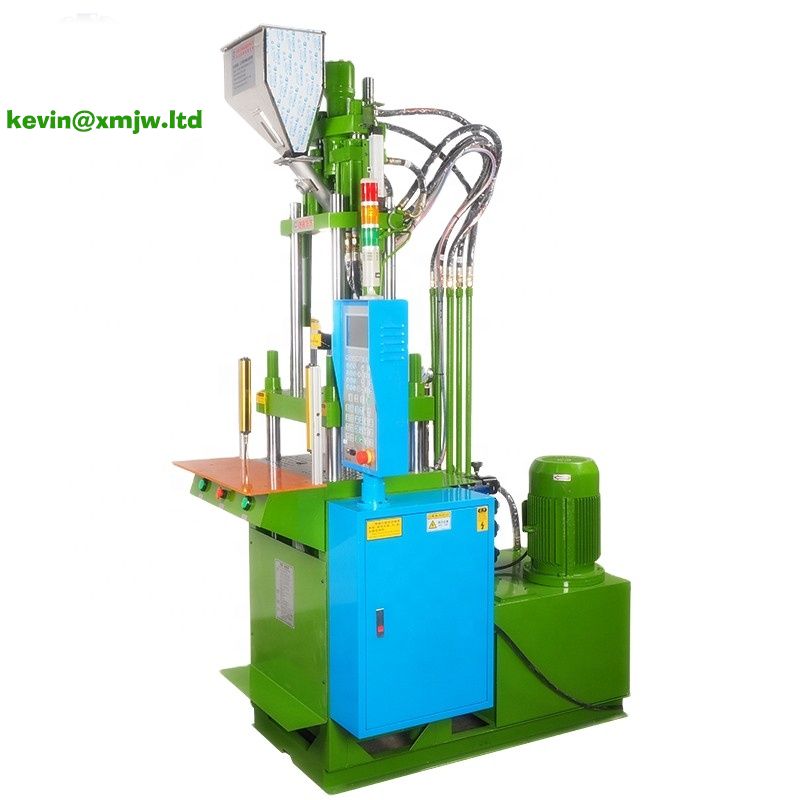

Electric Plug Making Machines Mobile Cover Making Machine Plastic Electrical Cable Lug Machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230813686129
- Availability: 500
Electric Plug Making Machines Mobile Cover Making Machine Plastic Electrical Cable Lug Manufacturing Machine
Detailed Images
Finished Products
Product Overviews
| MODEL | UNIT | JY- 350ST | |
| INJECTION UNIT | Screw Diameter | mm | ø28 |
| Theoretical Injection Volume | cm³ | 76.9 | |
| Injection Weight(PS) | g(oz) | 72.6(2.56) | |
| Max.Injection Pressure | Mpa(kgf/cm²) | 196(2000) | |
| Injection Rate | cm³/s | 60.3 | |
| Injection Speed | mm/s | 75 | |
| Injection Stroke | mm | 125 | |
| Screw Speed Rotation | r.p.m | 0-200 | |
| NO.of Temperaturecontrol | 3 | ||
| CLAMPINGUNIT | Clamping Force | KN(tf) | 343(35) |
| Clamping Stroke | mm | 200 | |
| Min.Mold Thickness | mm | 80/180 | |
| Max.Opening | mm | 280/380 | |
| (L*W)Max.MouldSize | mm | 370*205 | |
| (L*W)Platen Size | mm | 350*225 | |
| Ejector Distance | mm | 35 | |
| Ejector Force | KN(tf) | 172(1.75) | |
| OTHERS | Oli Tank Capacity | L | 80 |
| Electric Power | KW(HP) | 4(5.5) | |
| Heater Power | KW | 2.4 | |
| Machine Dimensions | L*W*H | 1.36*0.865*2.4M | |
| Machine Weight | tf | 1.4 |
Advantages
1.in-line screw type injection apparatus.
2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift,clean and convenient material head,fixed moldeasier.
6.can be installed with a single mode skateboards,skateboard or alternating dual mode
| (L*W)Max.Mould Size | 400*300mm |
| (L*W)Platen Size | 550*390mm |
| Applicable Industries | Advertising Company;Manufacturing Plant |
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Motor |
| Distance between Tie Bars | 410*250 |
| Ejector Force(kN) | 172 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 140 mm |
| Electric Power | 5.5KW |
| Injection Rate (g/s) | 120 g/s |
| Injection weight | 106.3g |
| Injection Weight (g) | 120 g |
| Key Selling Points | Competitive Price |
| Machine Dimensions | 1.36*0.865*2.4M |
| Machine Type | Electric |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Min.Mold Thickness | 150/250mm |
| Mold Height(mm) | 250 - 350 mm |
| Open Stroke(mm) | 450 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | ABS;ABS/PP;EPS;EVA;EVOH;FRPP/PVC;HDPE;HDPE/PP;LDPE;MLLDPE;PA;PC;PE;PE/PP;PET;Polylactic Acid;Polystyrene;PP;PPR;PVC;Other |
| Plastic Type | Thermoplastic |
| Plasticizing Capacity(g/s) | 120 |
| Power (kW) | 5.5 kW |
| Product name | injection molding machine |
| Screw diameter | 32mm |
| Screw diameter (mm) | 34 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam;India |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 127 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 1600 kg |
