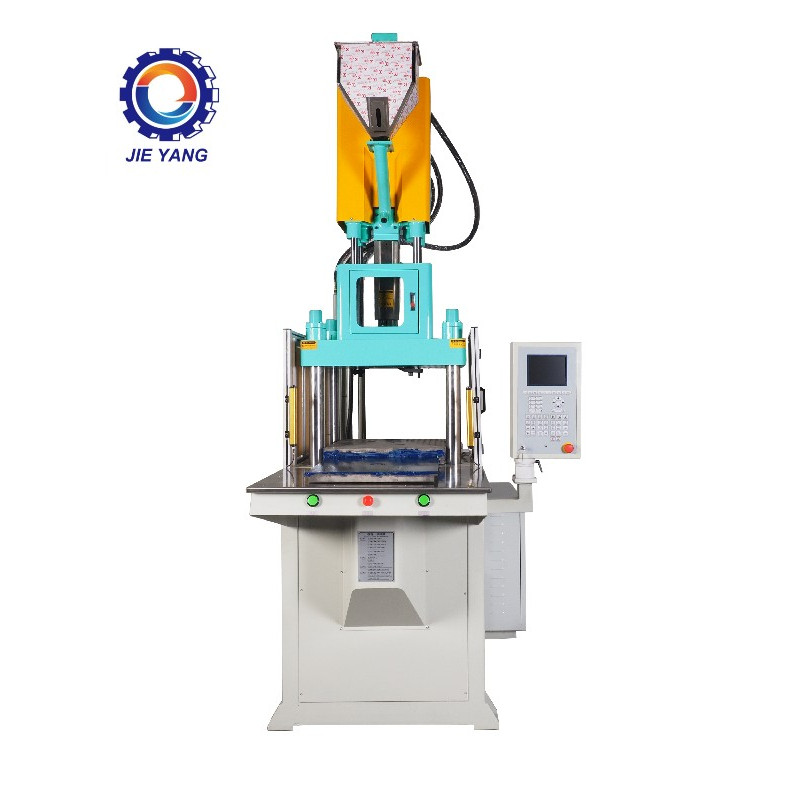

Pig Chicken Chain Making Machine Farm Feeding Chain Injection Molding Machine

Price in reward points: 24000
  • Brand: JIEYANG
  • Product Code: CN230813161984
  • Availability: 500
- +


Applicable IndustriesHotels;Building Material Shops;Manufacturing Plant;Home Use;Construction works;Energy & Mining
Core ComponentsBearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw;Other
Distance between Tie Bars470x280mm
Ejector Force(kN)172 kN
Ejector Number1
Ejector Stroke(mm)35 mm
Injection Rate (g/s)110.5 g/s
Injection speed88mm/s
Injection Stroke160mm
Injection Weight (g)201 g
Key Selling PointsMultifunctional
Machine TypeHydraulic
Machinery Test ReportProvided
Max Injection Pressure128.6Mpa
Max Opening380/480
Mold Height(mm)180 - 280 mm
Nozzle Out From Platens≥45
Number of Temperature Control3
Oil Tank Capacity175L
Open Stroke(mm)200 mm
Place of OriginGuangdong;China
Plasticizing Capacity(g/s)201
Platen Size640*450
Power (kW)7.5 kW
Product nameJIEYANG
Screw diameter (mm)40 mm
Screw Speed (rpm)0 - 200 rpm
Showroom LocationViet Nam
System Pressure13.7Mpa
Theoretical Shot Volume(cm³)226 cm³
TypeTube Shoulder Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)2100 kg
