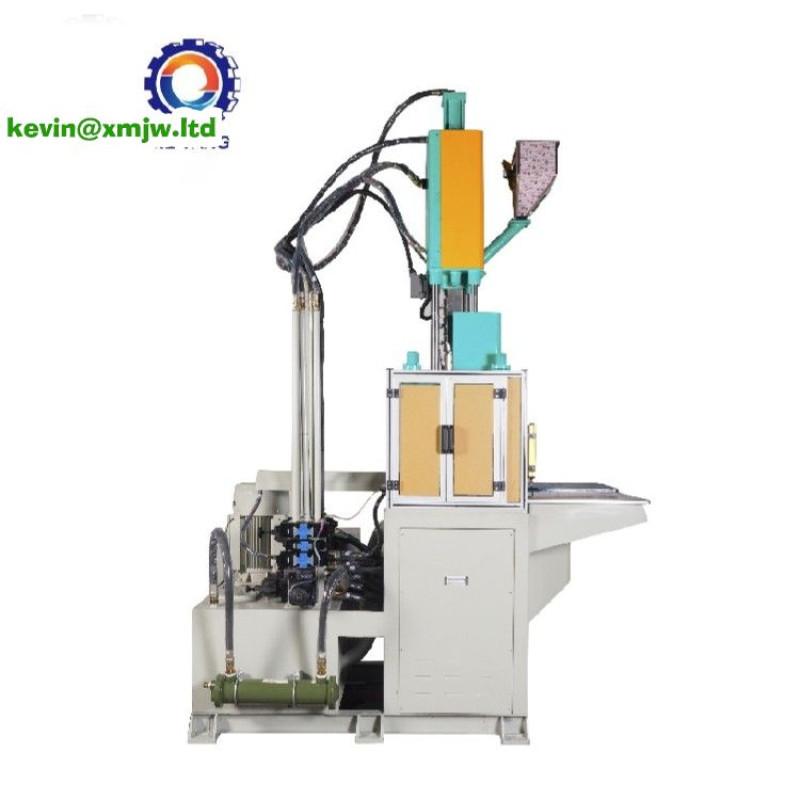

PVC Double Side Key chain Making Machine injection molding machine

Price in reward points: 26000
  • Brand: JIE YANG
  • Product Code: CN230813150333
  • Availability: 500
- +

Factory sale small injection molding machine sign board LED lighting injection machine manufacture

Factory sale small injection molding machine sign board LED lighting injection machine manufacture



ModelUnit JY-350ST-DJY-450ST-D
Screw Barrel Diametermm2628303032 34
Injection Pressurekg/cm223192000 1742174215311356
Max. Shot Weightgram66.372.6 83.498.9112.5 127
Max. Shot Weightcm3/sec5360.5 725360.3 72
Screw Barrel Routemm140200
Screw Barrel Rotary Speedrpm1900-200
Clamping Forcetons3545
Slide Platen Sizemm350*350390*420
Distance Between Tie Beremm525*325635*425
Min. Mold Heightmm80/180120/220
Opening Strokemm200200
Max. Opening Mold Distancemm280/380350/420
Ejetor Forcetons1.51.5
Ejetor Stokemm8585
Max. Hydraulic Pressurekg/cm2140140
Pump OutputL/min4756
Oil Resservoir CapacityLiter80120
Cooling Water ConsumptionL/hr800-10001000-1200
Pump Motor Powerkw/hp4/5.5HP5.5/7.5HP
Barrel Heating Powerkw2.43.4
Total Powerkw69
Machine Weighttons1.551.8
Machine Dimension(LxWxH)meter1.04*1.6*2.971.72*1.1*2.26
Shipping Weighttons5.46.7
Shipping Measurements(LxWxH)meter2.2*1.9*2.72.5*2.1*2.9


The features of JY-STD series injection molding machine are as follows:
1.Vertical four-column clamping, vertical injection, easy to pick and place inserts and finished products
2.Single slide design, increase production efficiency, easy operation and high safety
3.Four-column single-slide machine (1 upper die, 1 lower die)







After-sales Service ProvidedEngineers available to service machinery overseas
Applicable IndustriesBuilding Material Shops;Silicone products;medical industry;plastic industry
Brand NameJIE YANG
Core ComponentsMotor
Distance Between Tie Bere370*205mm
Ejector Force1.5Tons
Ejector Force(kN)14.7 kN
Ejector Number1
Ejector Stoke85mm
Ejector Stroke(mm)85 mm
Injection Rate (g/s)72 g/s
Injection Weight (g)83.4 g
Key Selling PointsHigh Productivity
Machine Dimensions(LxWxH)2.33*1.4*2.97m
Machine Typeplastic injection machine;Vertical silicone injection molding machine
Machine weight1.5Tons
Machinery Test ReportProvided
Max.Open daylight420/27280/380mm
Min.Mold Height80/180mm
Mold Height(mm)80 - 180 mm
Open Stroke(mm)200 mm
Place of OriginGuangdong;China
Power (kW)6 kW
Screw diameter30mm
Screw diameter (mm)30 mm
Screw Speed (rpm)0 - 190 rpm
Showroom LocationViet Nam
Slide Plate Size350*350mm
Theoretical Shot Volume(cm³)88.3 cm³
TypeTube Head Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)1550 kg
