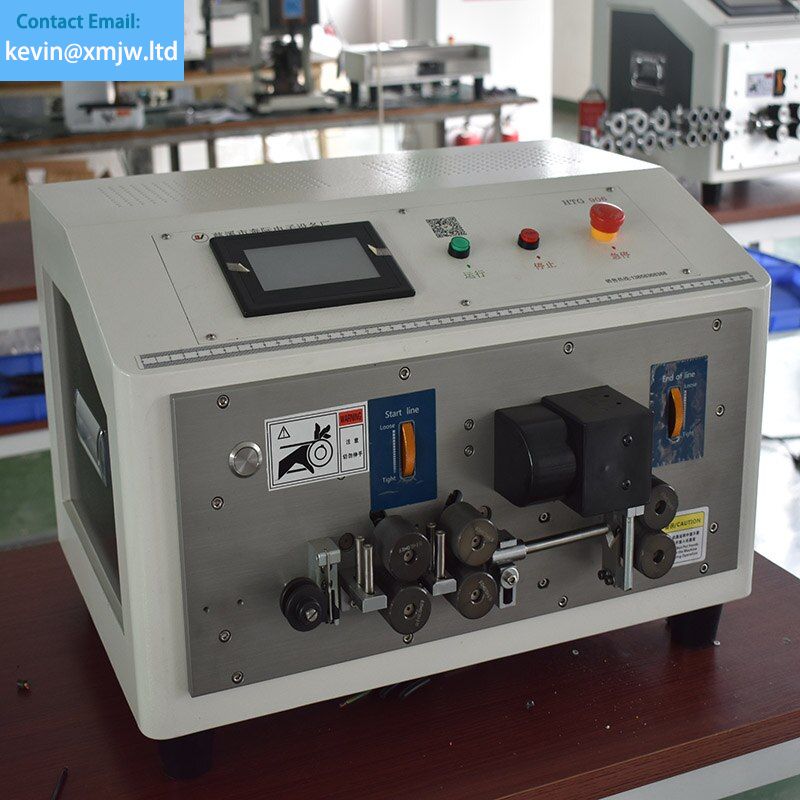

Fully automatic Two cores Flat wires 0.3 -2.0mm square sheath cable stripping and twisting machine stepping motor

Price in reward points: 3420
  • Brand: unbranded
  • Product Code: CN230809259606
  • Availability: 388
- +

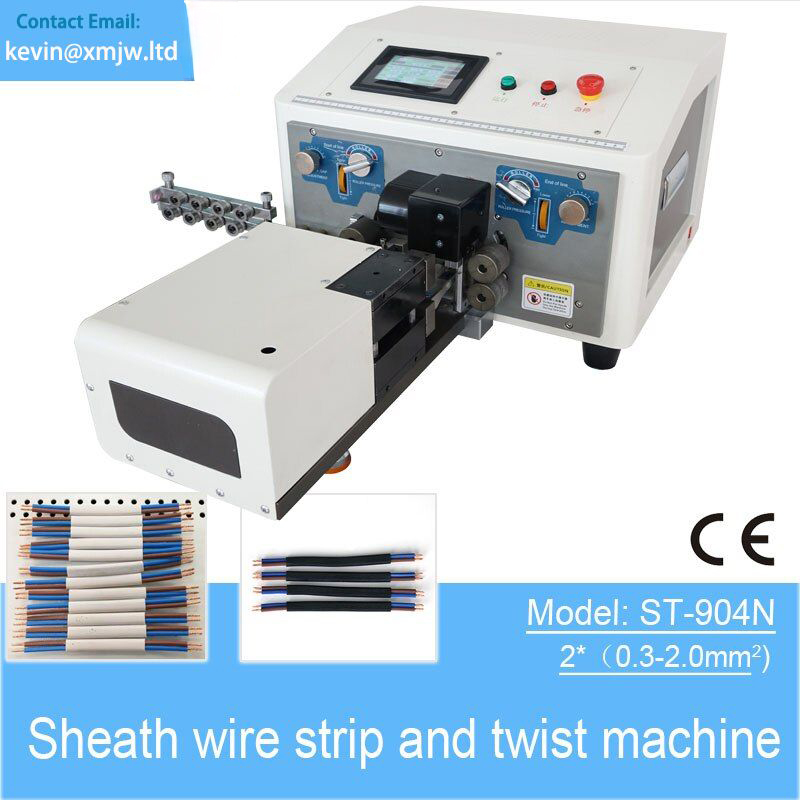

Two Cores Flat Sheath Wire Stripping Machine with Copper Wire Strands Twist

This Machine is maily suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle etc. With a mircomputer controlled very clean designed mechanism, It cuts and strips wire automatically. The direct and easy to use interface allows inexperienced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needed. Rapid and automatic cutting allow high boots the producitivity.

* Single-chip self-developed motion control board
* Full touch 4.3 inch LCD screen
* Low noise hybrid subdivision driver
* One-key correction of wire length error
* Unique appearance, sleek and precise design

Machine Parameter

Model ST-904N
Power supply AC220V50/60HZ
Function Wire cutting, double-end inner and outer stripping and twisting, middle stripping wire range 2*(0.3-2.0mm2)+ twisted wire
Size 565mm*385mm*370mm
Cutting length 0.1mm-99999.9mm
weight 43kg
Outer Stripping length head 0.1-250mm, stripping tail 0.1-70mm
Blade material imported tungsten steel / high speed steel
Core length Stripping head 0.1-30mm, stripping tail 0.1-30mm
Capacity 500-1500/h
Stripping accuracy Silent hybrid step
ping motor 0.01mm
Remarks Function Automatic in/out, timing start, jog adjustment

ApplicationHome Appliance
FunctionWire cutting;double-end inner and outer stripping and twisting;middle stripping
HS Code8479899990
Model NumberST-904N
OriginMainland China
Stripping accuracySilent hybrid stepping motor 0.01mm
Wire Range2*(0.3-2.0mm2)+ twisted wire
