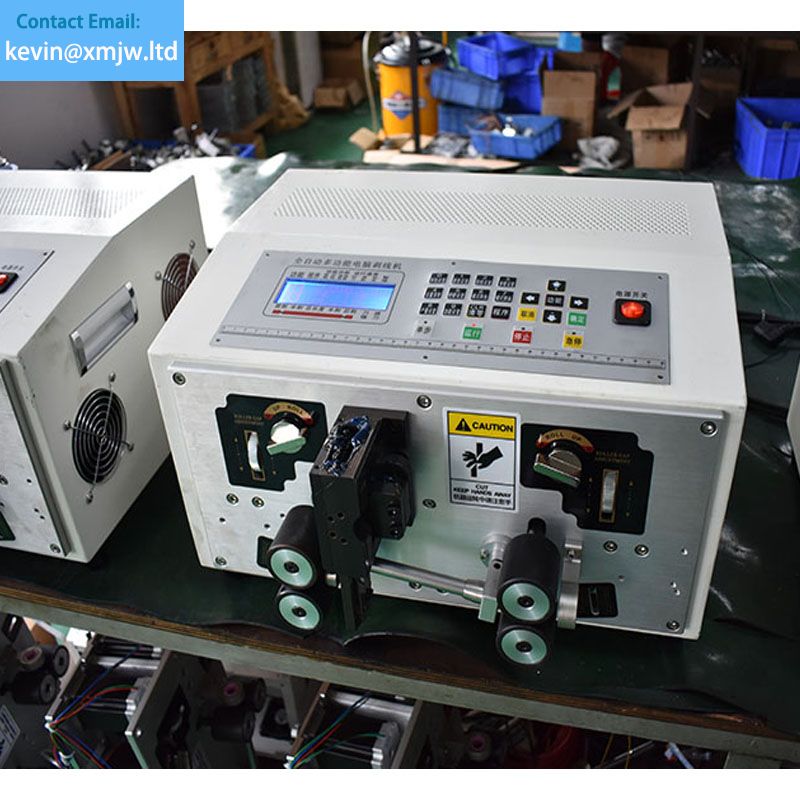

High Quality Automatic Wire Stripping Machine Bvr / BV Cable Strip Machine
This machine is mainly suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle parts, etc. With a microcomputer controlled very clean designed mechanism, it cuts and strips wire automatically. The direct and easy-to-use interface allows inexperienced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needed. Rapid and automatic cutting allow high boost the productivity.
1.-This machine adopts a 32-bit intelligent control system, Chinese and English switching LCD display frequency, press-build operation can store hundreds of information, recall at any time, fast efficiency.
2.- Four wheels are driven at the same time, the gear is cut, the knife cut is neat, and the stripping quality is stable.
3.- Life span of 3 million time, no damage to the core
4.- Freely set two strips, mltiple strips in the middle , half strips, cut lines, etc
5.-Use 10 rounds of straightener, more precise, improving work quality and efficiency.
Power supply AC220V50/60HZ
Function Wire cutting, double-end stripping, middle stripping
Wire range 0.1-10mm2
Cutting length 0.1mm-99999.9mm
Stripping length head 0.1-300mm, stripping tail 0.1-80mm
Blade material Imported tungsten steel / high speed steel
Middle strip 13 segments
Display method LCD English display
Remarks Function Automatic in/out, timing start, jog adjustment
