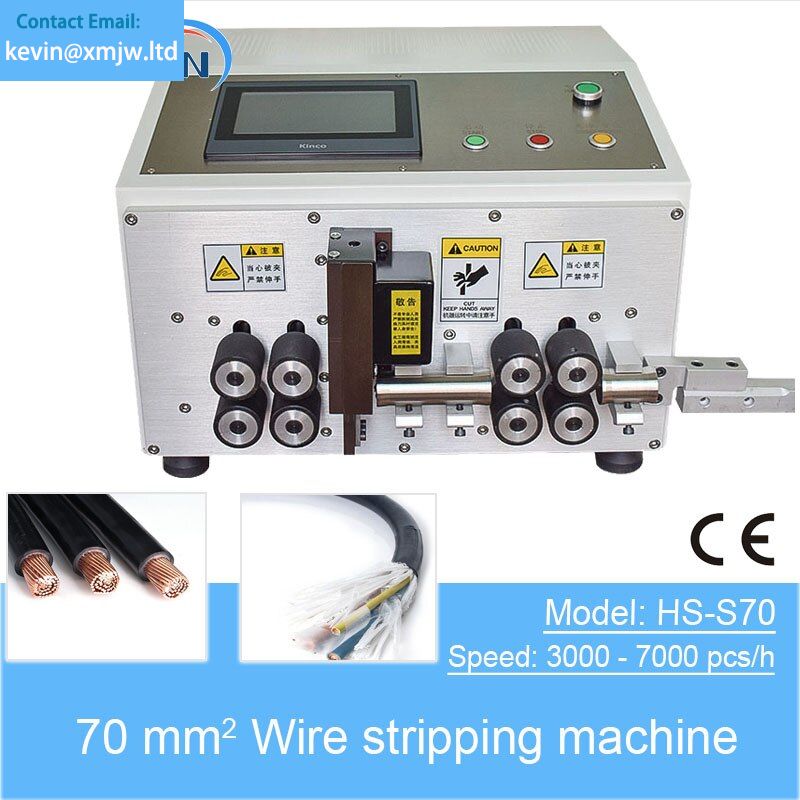

HS-S70 High Speed Automatic Thick Cable Stripping Machine Electric Wire Cut and Strip Machine
This machine is mainly suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle parts, etc. With a microcomputer controlled very clean designed mechanism, it cuts and strips wire automatically. The direct and easy-to-use interface allows inexperienced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needed. Rapid and automatic cutting allow high boost the productivity.
1.-This machine adopts a 32-bit intelligent control system, Chinese and English switching LCD display frequency, press-build operation can store hundreds of information, recall at any time, fast efficiency.
2.- Four wheels are driven at the same time, the gear is cut, the knife cut is neat, and the stripping quality is stable.
3.- Life span of 3 million time, no damage to the core
4.- Freely set two strips, mltiple strips in the middle , half strips, cut lines, etc
5.-Use 10 rounds of straightener, more precise, improving work quality and efficiency
Power supply AC220V50/60HZ
Function Wire cutting, double-end stripping, middle stripping , twist
Wire range 1.5-70mm2
Cutting length 0.1mm-99999.9mm
Stripping length head 0.1-100mm, stripping tail 0.1-100mm
Blade material Imported tungsten steel / high speed steel
Display method LCD English display
Remarks Function Automatic in/out, timing start, jog adjustment
|Operation system||English Language|
|Transport Package||Export Wooden Packing & Carton Packing|
