molding machine for blood tube making machine Fitting joint Vertical injection molding machine
Price in reward points: 7600
- Brand: JIE YANG
- Product Code: CN230813667789
- Availability: 500
Product Description
Made in China molding machine for blood tube making machine Fitting joint Vertical injection molding machine
Machine Paremeter:
MODEL | JY-160S2 |
Screw Diameter | 28mm |
Max.Shot Weight | 57g |
Clamping Force | 25Tons |
Opening troke | 180mm |
Ejector Force | 1.3Tons |
Ejector Stoke | 35mm |
Oil Resservoir Capacity | 100L |
Pump Motor Power | 1.8KW/5.5HP |
Power | 6.3KW |
Machine Weight | 0.8Tons |
Machine Dimensions(LxWxH) | 1.2*0.9*2.06m |
Shipping Weight | 1Tons |
Shipping Measurment(LxWxH) | 1.4*1.1*2.23m |

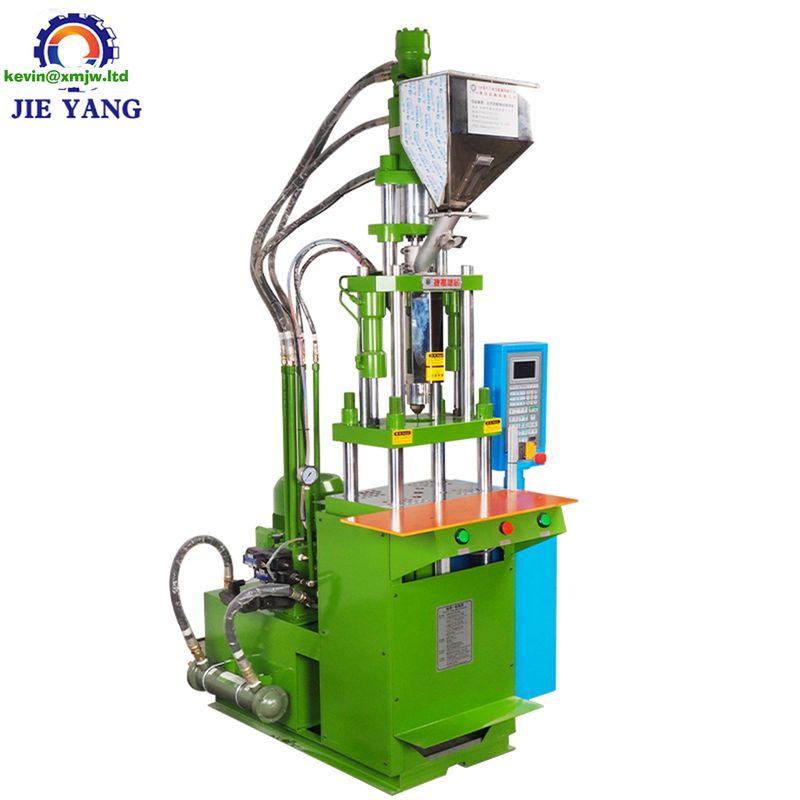

Details photos:
| After-sales Service Provided | Overseas service center available |
| Applicable Industries | Advertising Company;Manufacturing Plant |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Bearing;Engine;Gear;Motor;Pump |
| Distance between Tie Bars | 270x270 mm |
| Distance Between Tie Bere | 270 |
| Ejector Force(kN) | 12.7 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 25 mm |
| Injection pressure | 1019kg/cm2 |
| Injection Rate (g/s) | 58 g/s |
| Injection Weight (g) | 71.4 g |
| Key Selling Points | Competitive Price |
| Machine dimension | 1.35*0.92*2.06m |
| Machine Type | Electric |
| Machine weight | 1.0Tons |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Min. Mold Thickness | 100/25mm |
| Mold Height(mm) | 25 - 75 mm |
| Open Stroke(mm) | 116 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | ABS;ABS/PP;EPS;EVA;EVOH;FRPP/PVC;HDPE;HDPE/PP;LDPE;MLLDPE;PA;PC;PE;PE/PP;PET;Polylactic Acid;Polystyrene;PP;PPR;PVC;PF |
| Platen Size | 450*280mm |
| Power (kW) | 2.2 kW |
| Product name | Mini Plastic Thermoforming Injection Molding Machine For Usb Cable |
| Screw diameter | 28mm |
| Screw diameter (mm) | 28 mm |
| Screw L/D Ratio | 115 |
| Screw Speed (rpm) | 0 - 190 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 71.4 cm³ |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 600 kg |
