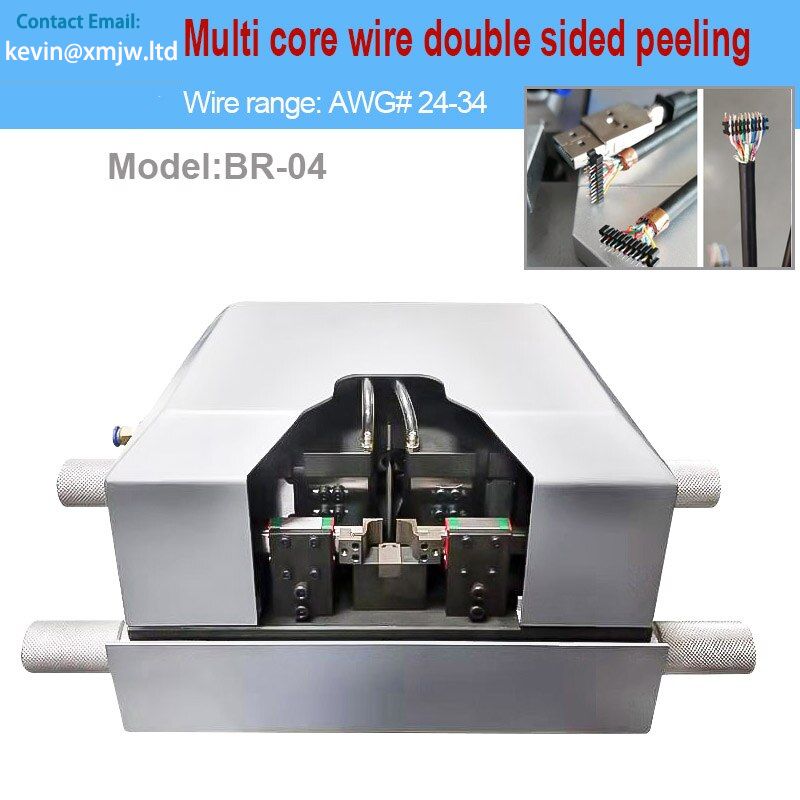

Multi Cores Wire Inner Cores Double Side Peeling Machine Shield data Wire Cores Strip Machine

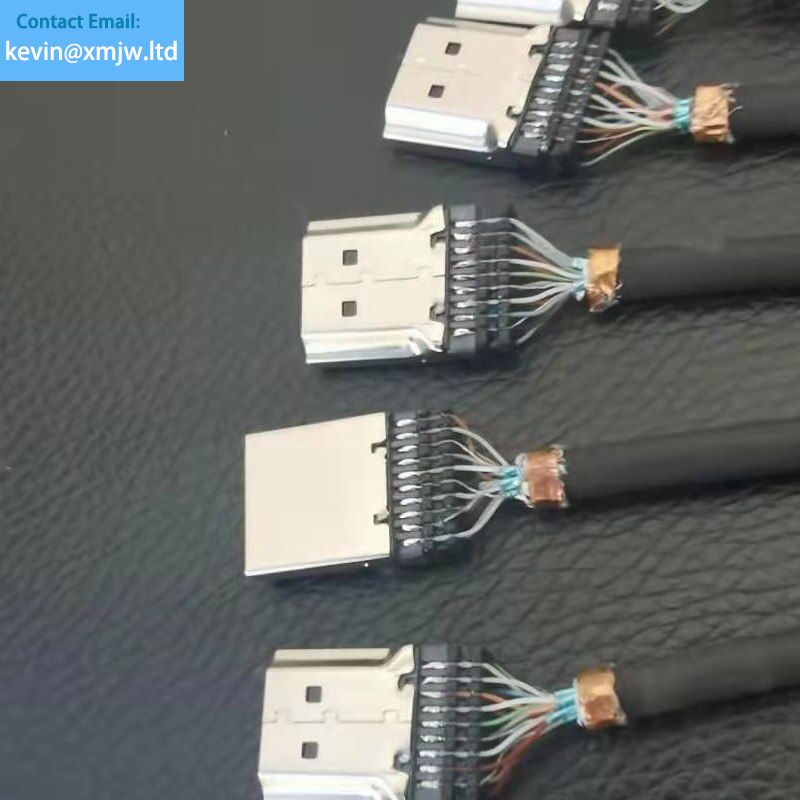

This machine is suitable for:UL2468double parallel wires20-28 AWG chargers earphone wires two-core flat wires round wires etc. The peeling and twisting wire tin machine completes all the actions of peeling the outer skin peeling the inner core,twisting the wire,tinning and cutting at one time,achieving the most ideal effect at the fastest and greatly increasing the output.

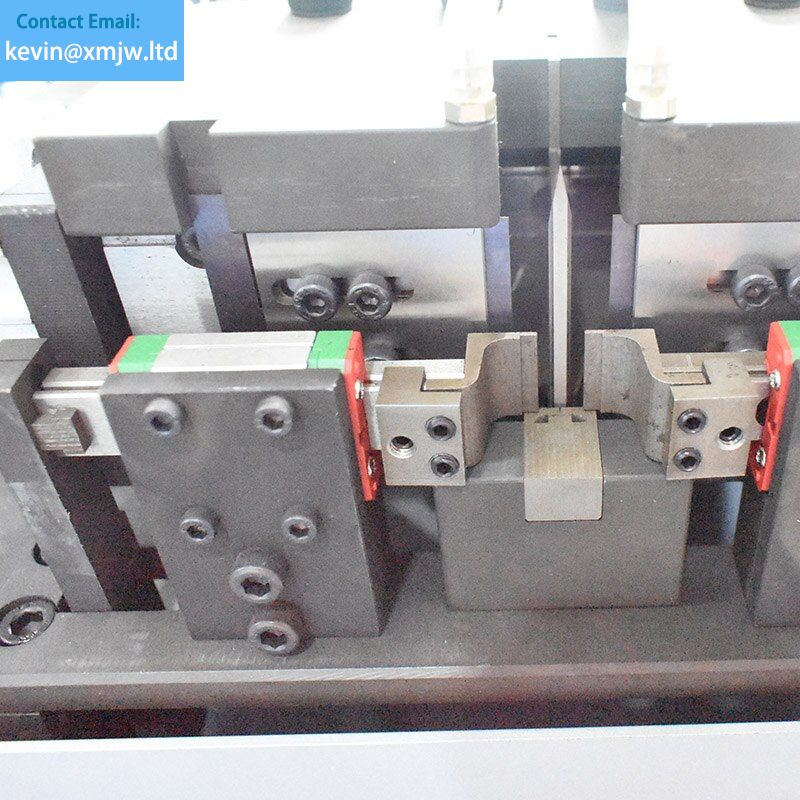

* Wire transmission device
The conveying device is made of high temperature resistant materials which is not easy to age, and the feeding line is stable. Each piece is fixed with screws and is not easy to fall off
The whole machine adopts PIC control,and all actions can be controlled separately making debugging more convenient.

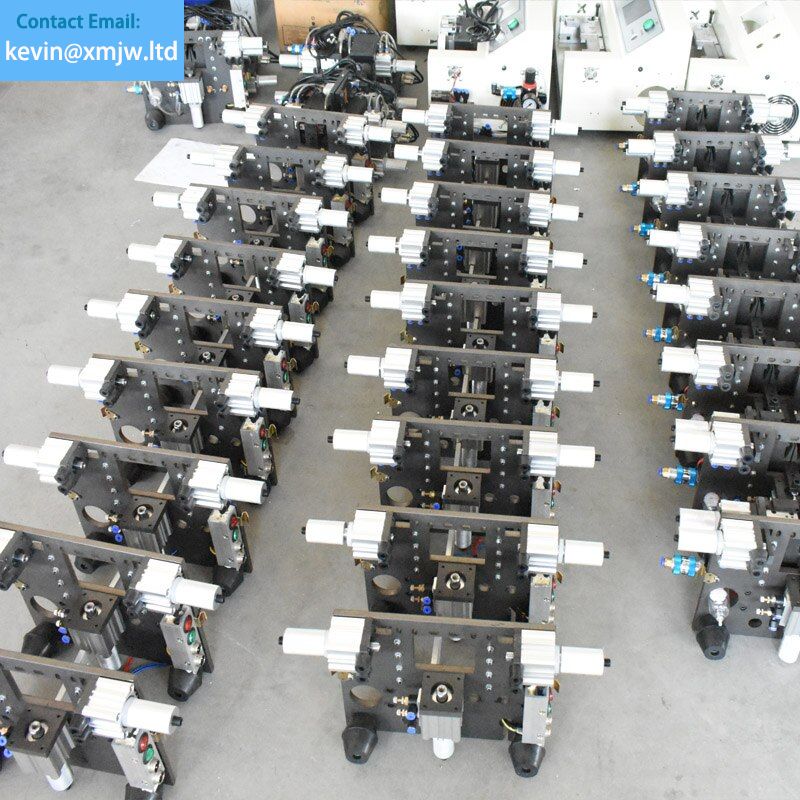

* Cylinder control
The cylinder adopts Airtac cylinder, which can make the machine run stablynot easyto make mistakes and increase the service life of the machine
The operation panel is simple and clear,with a thermostat and a counterthe operator can keep track of the machine's running status
Power supply AC220V50/60HZ
Use air pressure 5-8 kg
Work efficiency 300-600 per hour (two ends)
Dimension 240MM Width 430MM,Height 190MM
|Operation system||English Language|
|Transport Package||Export Wooden Packing & Carton Packing|
