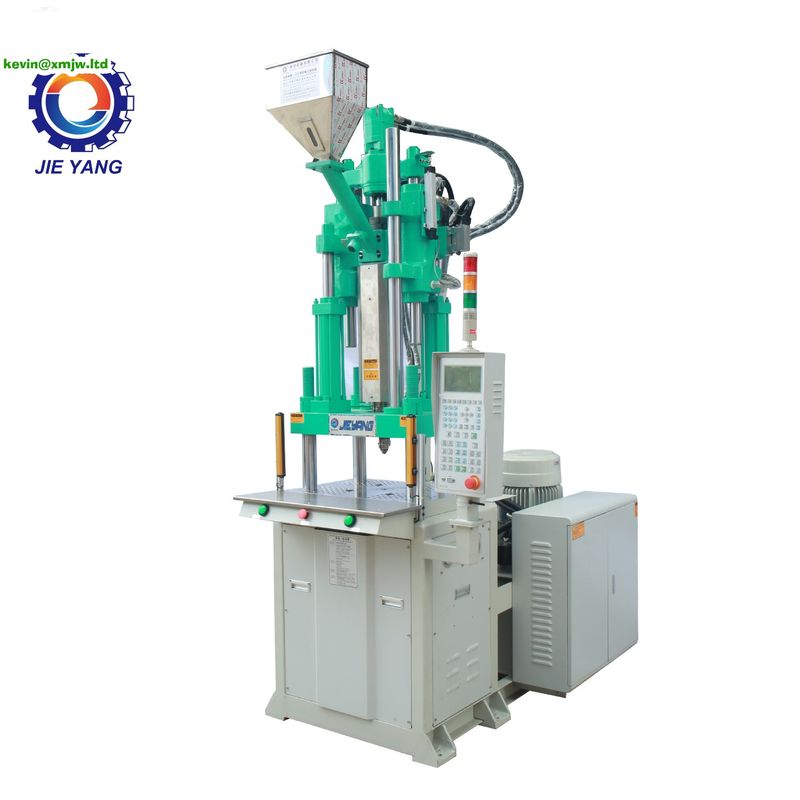

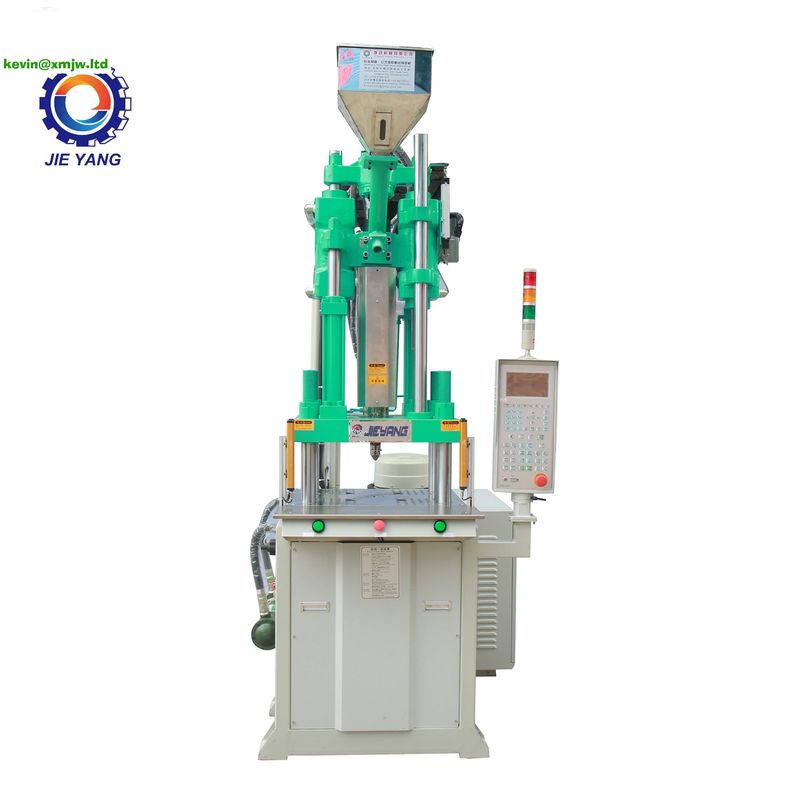

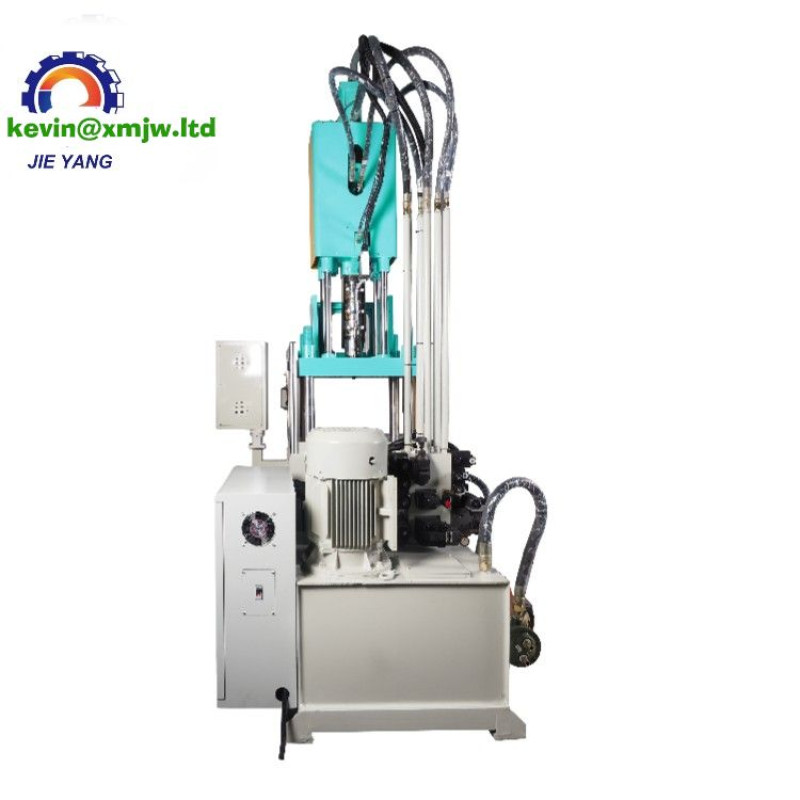

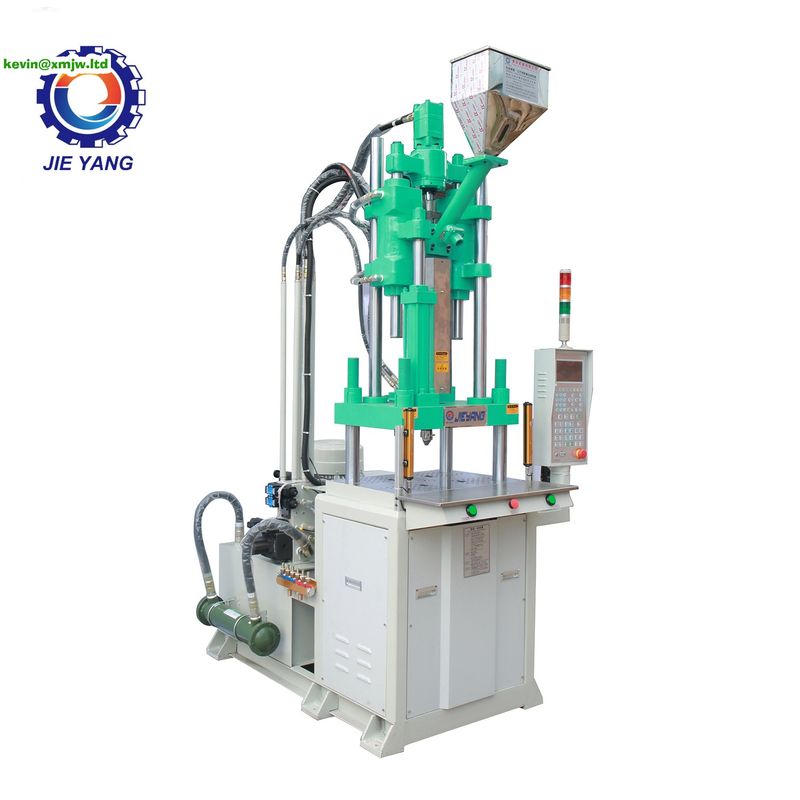

Multifunction Vertical Cutting Board Household Kitchen Fish Meat Vegetable Chopping Block Plastic Injection Molding Machine

Price in reward points: 72000
  • Brand: JIEYANG
  • Product Code: CN230813438699
  • Availability: 500
- +




(L*W) Platen size980*640 mm
Applicable IndustriesHotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company
Brand NameJIEYANG
ConditionNew
Core ComponentsBearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw
Distance between Tie Bars760x420 mm
Ejector Force(kN)45 kN
Ejector Number1
Ejector Stroke(mm)95 mm
Heater Power10.7 KW
Injection Rate (g/s)170.7 g/s
Injection speed87mm/s
Injection Stroke180 mm
Injection Weight (g)333.8 g
Key Selling PointsHigh Safety Level
Machine Dimension(L*W*H)2.1*1.75*4.3 m
Machine TypeHydraulic
Machinery Test ReportProvided
Max. Injection Pressure115.2 Mpa
Mold Height(mm)280 - 380 mm
NO. of Temperature control3+1
Oil Tank Capacity350 L
Open Stroke(mm)280 mm
Place of OriginGuangdong;China
Plastic ProcessedPP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid
Power (kW)15 kW
Product namePlastic Injection Moulding Machine
Screw diameter (mm)50 mm
Screw Speed (rpm)0 - 250 rpm
Showroom LocationViet Nam
StyleVERTICAL
System Pressure13.7 Mpa
Theoretical Shot Volume(cm³)353 cm³
TypeTube Shoulder Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)5500 kg
