Nema23 Stepper Motor 57Hs112 Tb6600 23Hs5628 2.8A With Tb6600 4A Stepper Motor Driver Nema17 23 For Cnc Router 3D Printer
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230812366173
- Availability: 180000
Nema23 Stepper Motor 57Hs112 Tb6600 23Hs5628 2.8A With Tb6600 4A Stepper Motor Driver Nema17 23 For Cnc Router 3D Printer

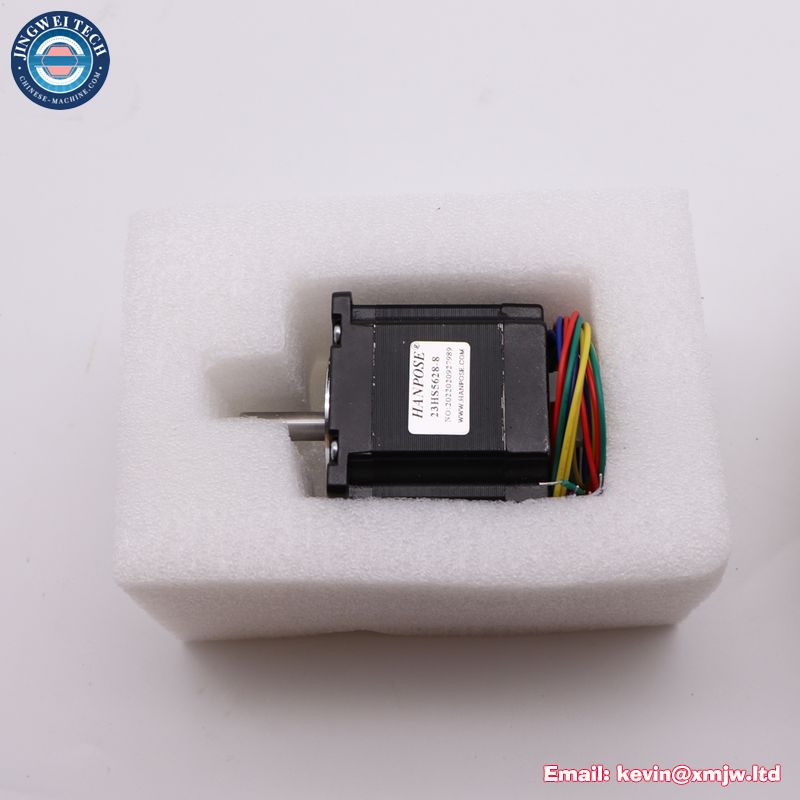

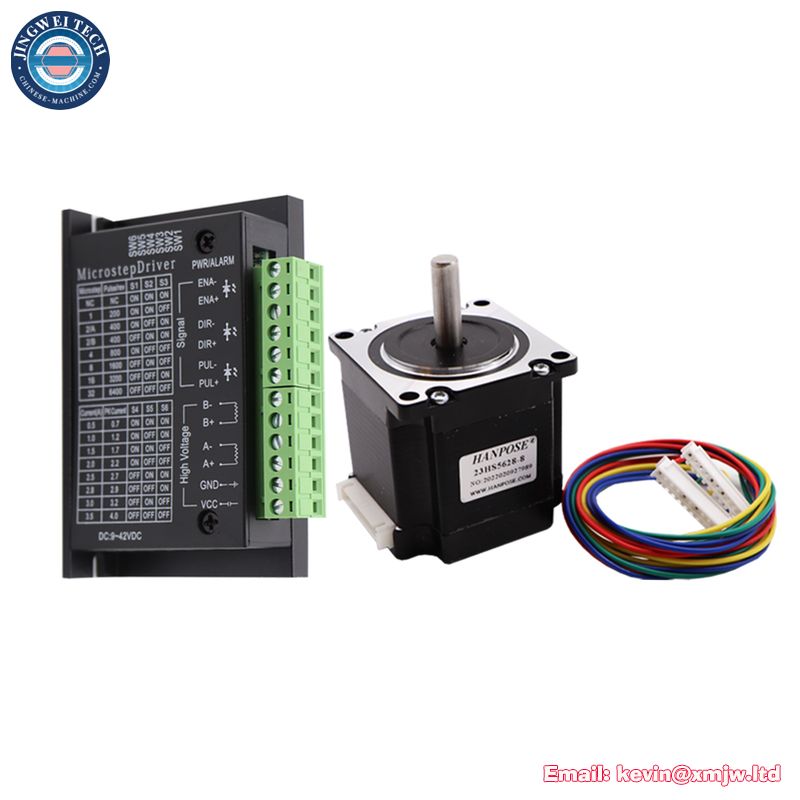

Packing List

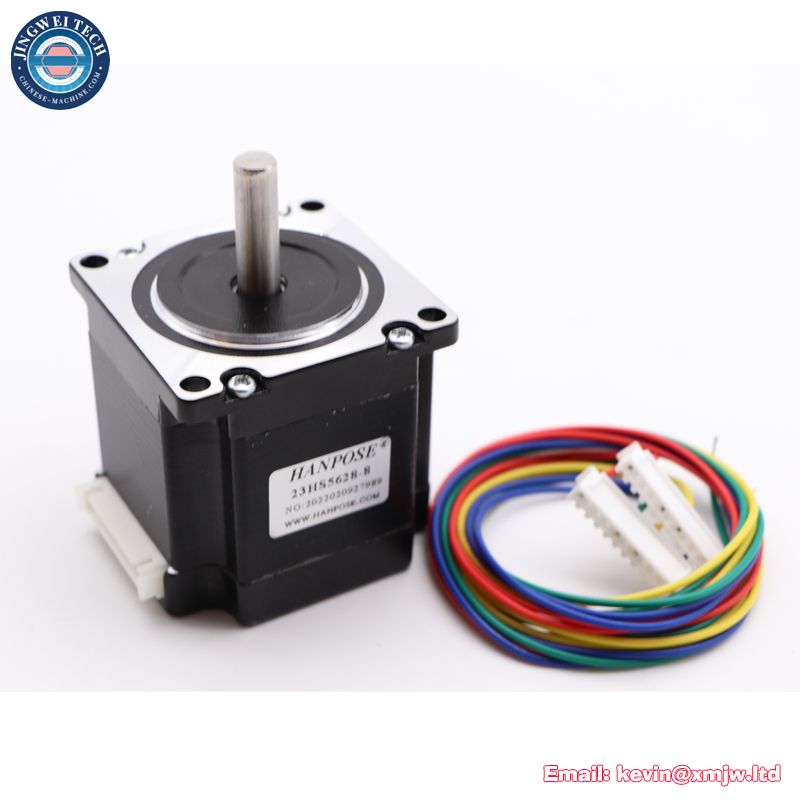

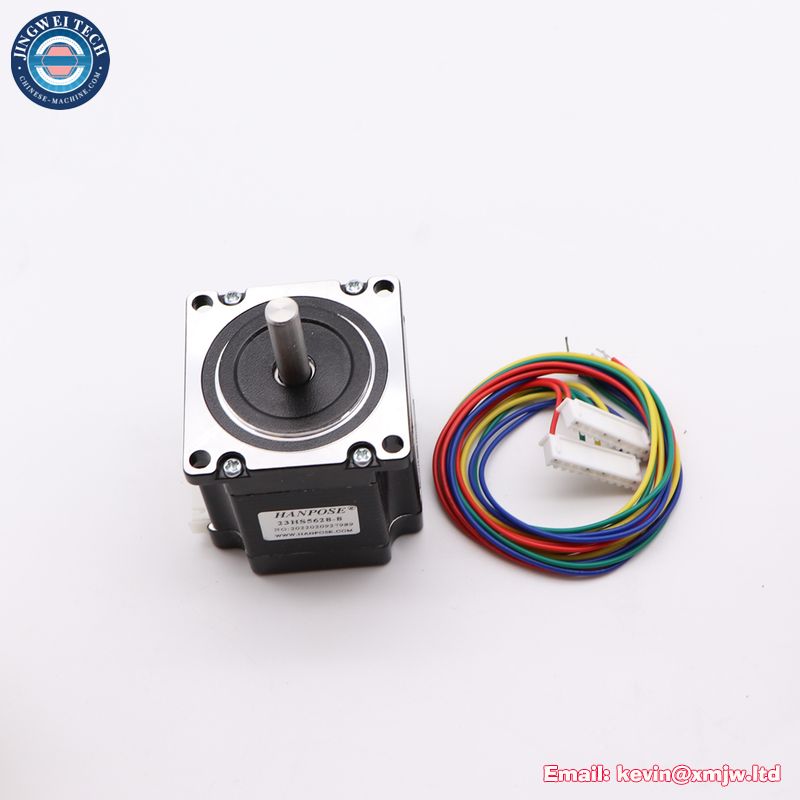

1PCS 23HS5628 motor
1PCS TB6600 Stepper motor driver
1PCS line

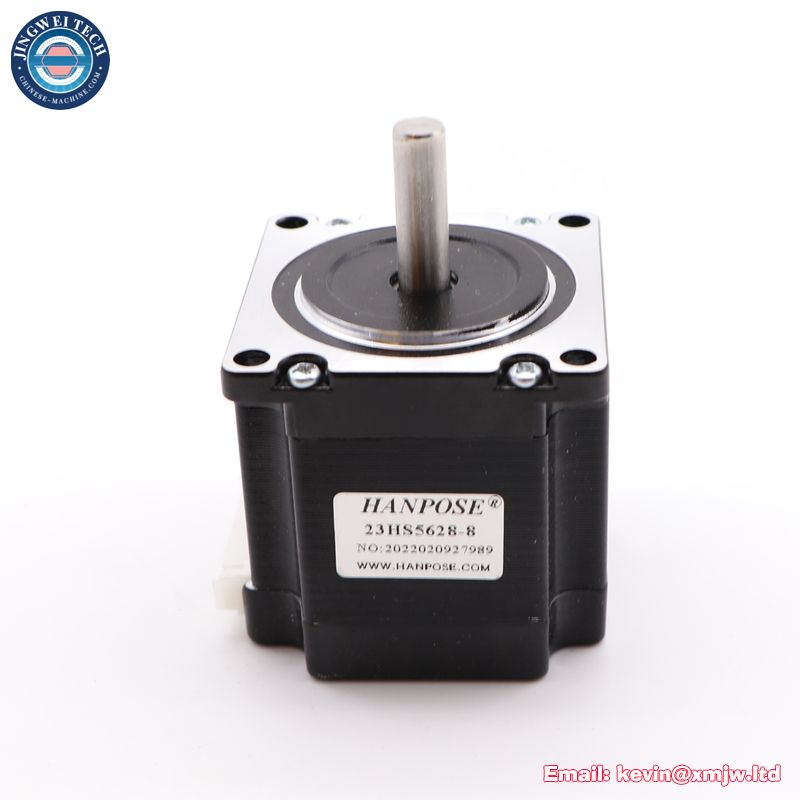

Model:23HS5628
Step Angle:1.8deg
Mitir Length:56mm
Rated Current:2.8A
Phase REsistance:0.9Ohm
Phase Inductance:2.5mH
Holding Torque:126N.cm
ROtor Inertia:300g.cm2
Lead wire 4 No
Motor Weight:700g
Introduction:

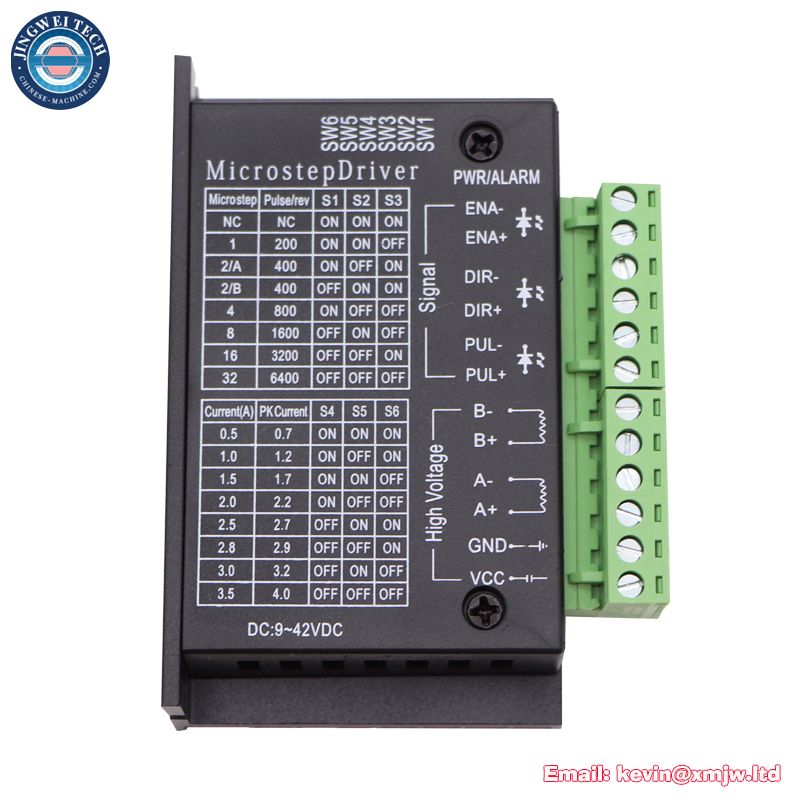

The upgraded version of TB6600 is a driver suitable for 57/42 type two-phase hybrid stepping motor with phase current below 4.0A.
Set 7 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch
And 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)
Widely used in various small and medium-sized automation equipment and hardware,
Such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, crystal grinding machine, automatic assembly equipment, etc.
The best application object is 57 stepper motors and 42 stepper motors with a torque of 1.8N.m and below.
About 23HS5628:
| Cable length | 1M |
| Certification | CE;CE |
| Current / Phase | A |
| Feature 1 | Nema23 Stepper Motor and Tb6600 Driver |
| Feature 2 | Nema23 Stepper Motor |
| Feature 3 | Stepper Motor |
| Feature 4 | Nema23 Motor |
| Feature 5 | Nema23 Stepper Motor Driver |
| Feature 6 | Stepper Motor Driver |
| feature 7 | Nema23 Motor Driver |
| Feature 8 | Motor Driver |
| Feature 9 | TB6600 |
| Gear Ratio | 5:1 |
| Holding Torque | 1.8 |
| Model Number | Nema23 Stepper Motor and Tb6600 Driver |
| Origin | Mainland China |
| Phase | 2 |
| Plug Type | XH-2.54 |
| Step Angle(degrees) | 12600g.cm |
| Type | HYBRID |
