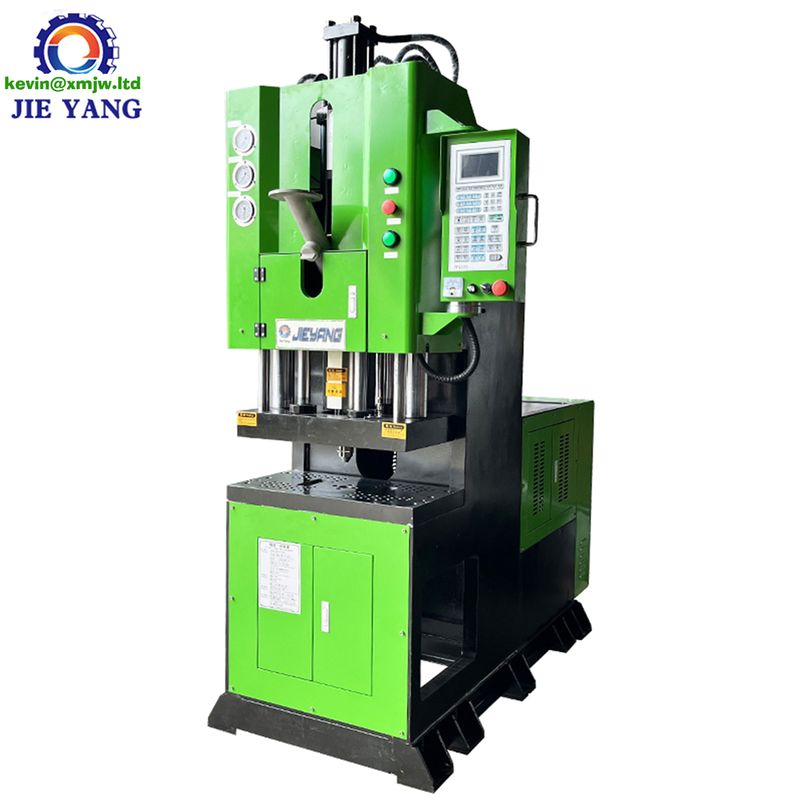

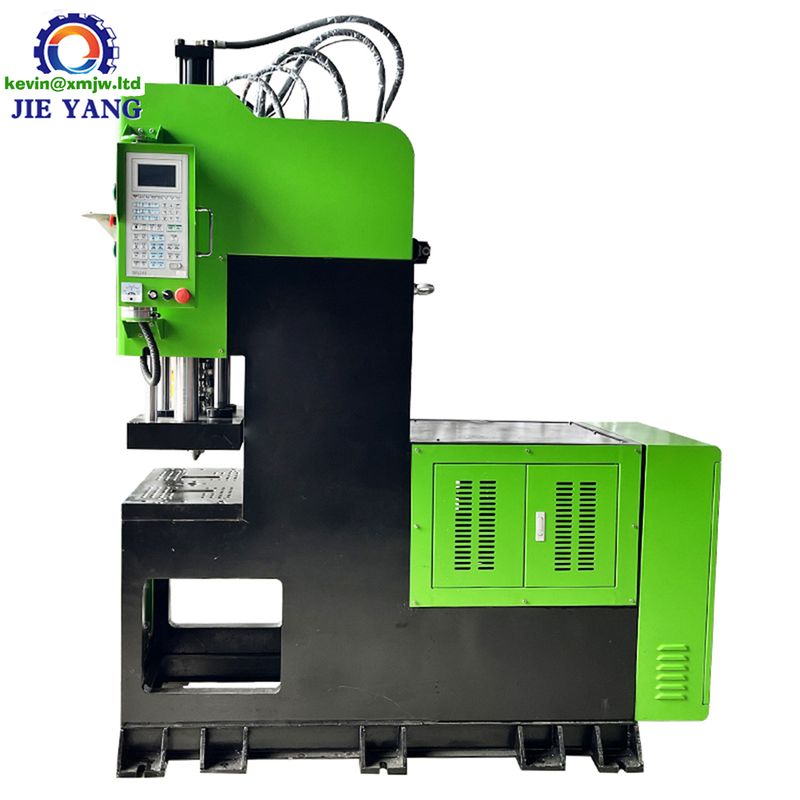

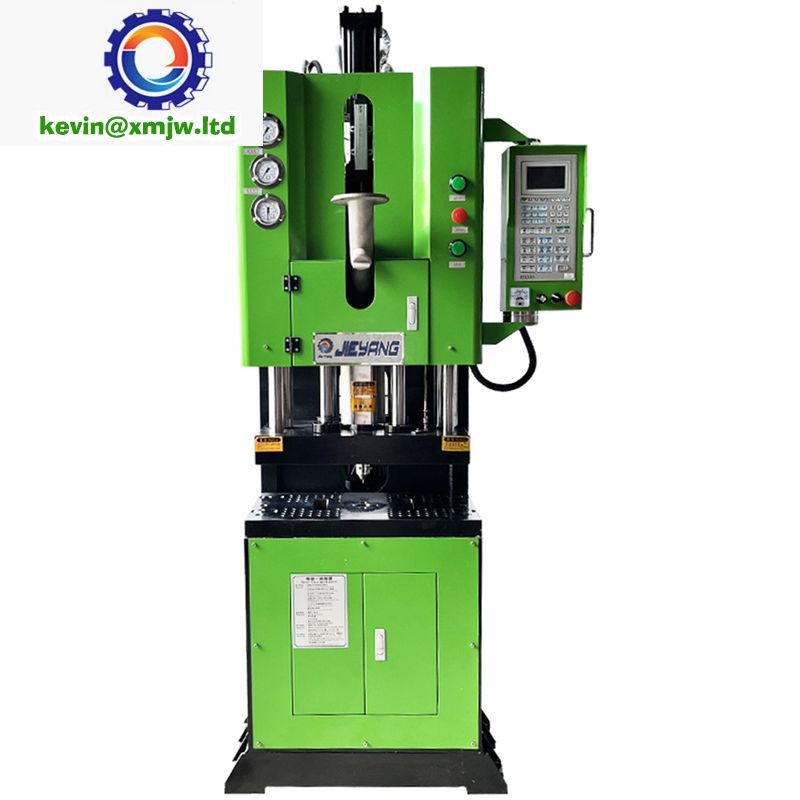

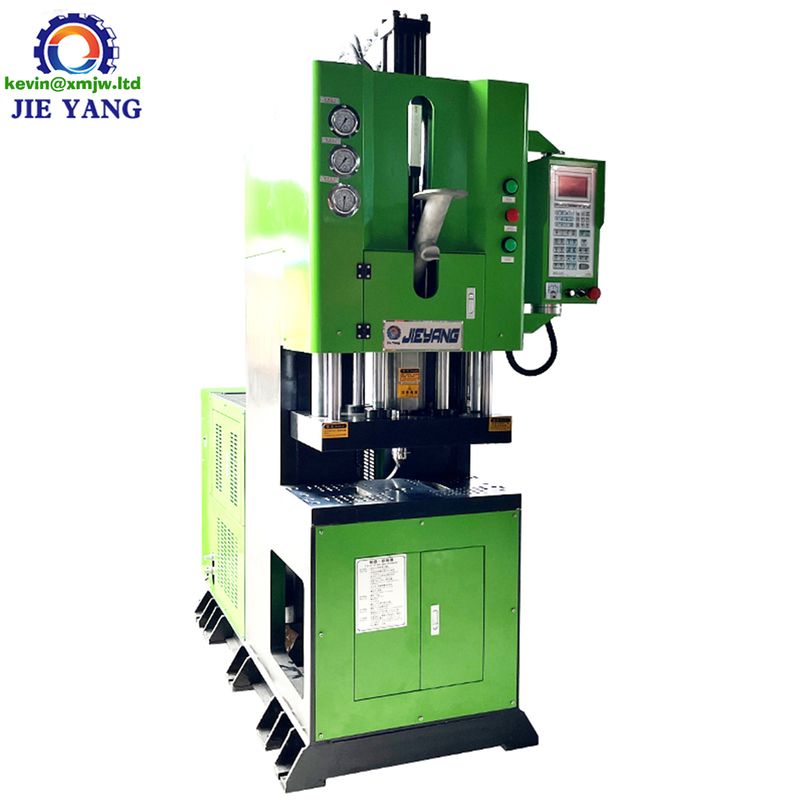

Cakes Minitype Plastic Stick Injection Molding Machine
Interested in this machine? Get a quote now!
Please send an EMAIL to: kevin@cablecutting.net or fill out the inquiry form below.
Inquiry Now
2.High injection pressure and high speed, suitable for the special molding products.
3.Diversified hydraulic system designs for different application needs.
1.Vertical clamping and vertical injection Tie -barless design easy and fast moldings insert and take out. With on-line automation. the operator can have more machinery choices.
2.High injection pressure and high speed, suitable for the special molding products.
3.Diversified hydraulic system designs for different application needs.
PRODUCT SPECIFICATIONS
|
|
MODEL |
UNIT |
|
|
||
|
INJECTION UNIT |
Screw Diameter |
mm |
Φ26 |
Φ28 |
Φ30 |
|
|
|
Theoretical Injection Volume |
cm3 |
66.3 |
76.9 |
88.3 |
|
|
|
Injection Weight(PS) |
g(oz) |
62.6(2.2) |
72.6 (2.56) |
83.4(2.94） |
|
|
|
Max. Injection Pressure |
Mpa(kgf/cm2) |
164.5(1677） |
142(1446） |
123.5(1260） |
|
|
|
Injection Rate |
cm3/s |
55 |
64 |
73.5 |
|
|
|
Injection Speed |
mm/s |
104 |
|||
|
|
Injection Stroke |
mm |
125 |
|||
|
|
Screw Speed Rotation |
r.p.m |
0-200 |
|||
|
|
NO. of Temperature control |
|
3+1 |
|||
|
|
Nozzle Out From Platens |
mm |
>45 |
|||
|
CLAMPING UNIT |
Clamping Force |
KN(tf) |
343(35) |
|
||
|
|
Clamping Stroke |
mm |
200 |
|||
|
|
Min. Mold Thickness |
mm |
150 |
|||
|
|
Max. Opening |
mm |
350 |
|||
|
|
(L*W)Max. Mould Size |
mm |
400*300 |
|||
|
|
(L*W)Platen Size |
mm |
720*340 |
|||
|
|
Ejector Distance |
mm |
60 |
|||
|
|
Ejector Force |
KN(tf) |
21.5(2.2) |
|||
|
OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
|
||
|
OTHERS |
| |||||
| (L*W) Platen size | 720*340 mm |
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Ejector Force(kN) | 21.5 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 60 mm |
| Heater Power | 2.9 KW |
| Injection Rate (g/s) | 73.5 g/s |
| Injection speed | 104 mm/s |
| Injection Stroke | 125 mm |
| Injection Weight (g) | 83.4 g |
| Key Selling Points | High Safety Level |
| Machine Dimension(L*W*H) | 2.05*1.145*2.21 m |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Max. Injection Pressure | 123.5 Mpa |
| Mold Height(mm) | 0 - 150 mm |
| NO. of Temperature control | 3+1 |
| Oil Tank Capacity | 160 L |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Power (kW) | 5.5 kW |
| Product name | Plastic Stick Injection Molding Machine |
| Screw diameter (mm) | 30 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7 Mpa |
| Theoretical Shot Volume(cm³) | 88.3 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 2250 kg |
