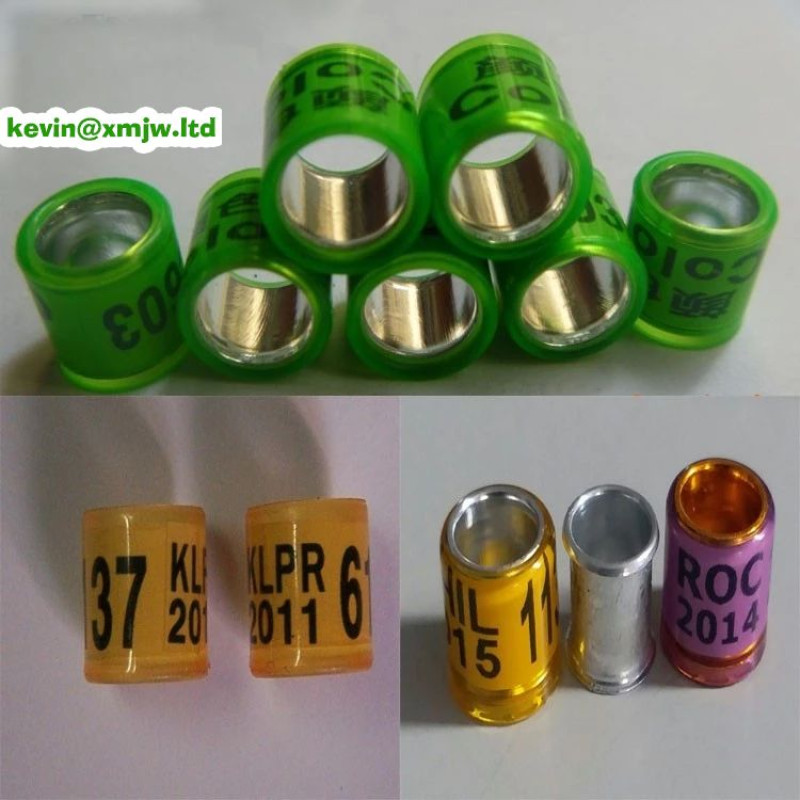

Pigeon Ring Plastic Molding Machine - Pigeon Ring Making Machinery Vertical
Interested in this machine? Get a quote now!
Please send an EMAIL to: kevin@cablecutting.net or fill out the inquiry form below.
Inquiry Now
Wholesale Machine Manufacturer Pigeon Ring Plastic Molding Machine Pigeon Ring Making Machinery Vertical Type Price
Parameter of 35Tons Plastic Injection Molding Machine:
| MODEL | UNIT | JY-350ST | |||
| Injection Unit | Screw Diameter | mm | 26 | 28 | 30 |
| Injection Pressure | kg/cm2 | 1530 | 1278 | 886 | |
| Max.Shot Weight(PS) | g | 56 | 64 | 74 | |
| Injection Rate | mm | 115 | |||
| Clamping Unit | Clamping Force | Tons | 35 | ||
| Platen Size | mm | 540x380 | |||
| Distance Between Tie Bere | mm | 375x205 | |||
| Min.Mold Height | mm | 158/58 | |||
| Opening Stroke | mm | 180 | |||
| Enjection Force | Tons | 1.3 | |||
| Enjection Stroke | mm | 35 | |||
| Power Unit | Max.Hydaulic Pressure | kg/cm2 | 140 | ||
| Pump Motor Power | KW/HP | 3.75/5HP | |||
| Total Weight | KW | 6.3 | |||
| Other | Machine Weight | Tons | 1.5 | ||
| Machine Dimensions(LxWxH) | m | 1.5x0.93x2.45 | |||
| Shipping Weight | Tons | 1.8 | |||
| Shipping Measurements(LxWxH) | m | 1.76x1.15x2.3 | |||
Successful Case:
| Applicable Industries | Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Home Use;Energy & Mining |
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw;Other |
| Ejector Force(kN) | 172 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 35 mm |
| Injection Rate (g/s) | 72 g/s |
| Injection speed | 75mm/s |
| Injection Stroke | 125mm |
| Injection Weight (g) | 83.4 g |
| Key Selling Points | Multifunctional |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Max Injection Pressure | 170.8Mpa |
| Max Opening | 280/380 |
| Mold Height(mm) | 80 - 180 mm |
| Nozzle Out From Platens | ≥35mm |
| Number of Temperature Control | 3 |
| Oil Tank Capacity | 80L |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Plasticizing Capacity(g/s) | 83.4 |
| Platen Size | 490*325 |
| Power (kW) | 4 kW |
| Product name | pigeon ring making machine plastic injection |
| Screw diameter (mm) | 30 mm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7Mpa |
| Theoretical Shot Volume(cm³) | 88.3 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 1400 kg |
