Automatic Wire Cutting Peeling Stripping Machine - 0.1mm²-10mm² Versatile

Electric Cable Stripping Machine Computer Wire Peeling Machine for 0.1mm2 to 10mm2

Automatic Wire Stripping Peeling Machine Specification

Wire Stripping Machine Parameter

1. Model: SWT508-2.5mm²

2. Voltage: AC 110V/220V

3. Cut off the error: can be modified

4. Display mode:  English display

5. Power: 300(W)

6. Cutting length: 1-9999mm

7. Cutring tolerance: (0.2±0.002×L)mm

8. Stripping length:head 0-30mm, end 0-30mm

9. Middle stripping: Max 11 places  strip

10. Wire cross section:0.05mm²～2.5mm²

11. Maximum diameter of tube: ￠5

12. Suitable wire stripping: PVC/PTFE/silicone cable/fiber glass wire

13. Blade material: Tungsten carbide material blade

14. Drive: 4 wheels drive

1,Model: SWT508-4mm²

2,Power: AC 220V/110V

3, POWER:300W

4,Cutting length: 1-9999 mm

5,Cutting tolerance: (0.2+/- 0.002 by L) mm

6,Cut off the error: can be modified

7,Stripping length:Front 0-30mm, end 0-30 mm

8,Middle strip cut: 11 places strip

9,Cutting wire core section:0.05mm²-4mm²

10,Max cut diameter: ￠6

11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc

12,The blade material: Tungsten carbide material blade

13,Driving way: 4 wheels drive

14,Showing the way: English LCD interface

15, 12 months warranty

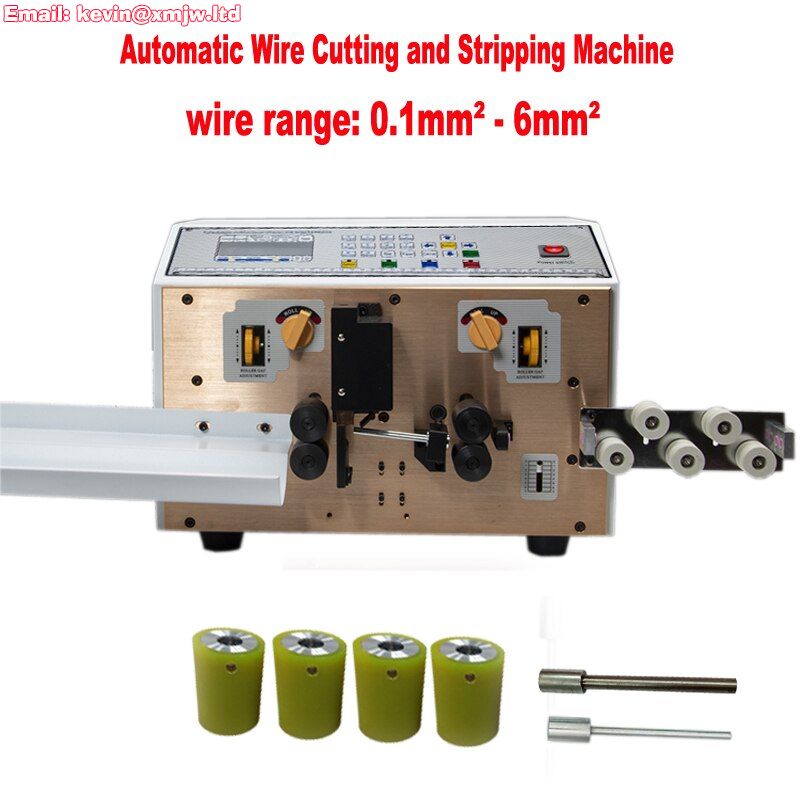

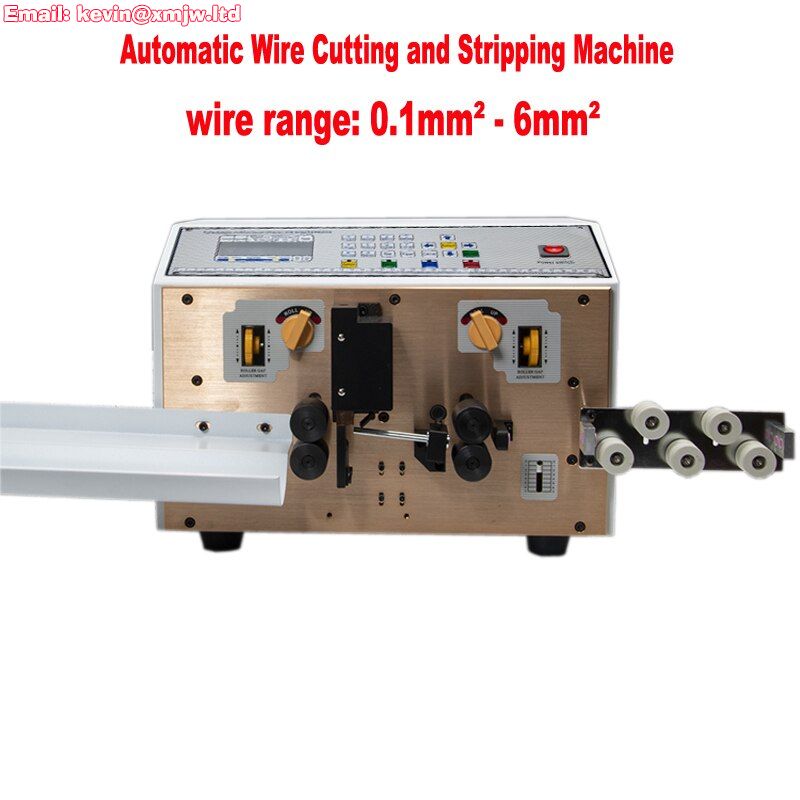

1,Model: SWT508-6mm²

2,Power: AC 220V/110V

3, POWER:300W

4,Cutting length: 1-9999 mm

5,Cutting tolerance: (0.2+/- 0.002 by L) mm

6,Cutting wire core section:0.05mm²- 6mm²

7,Stripping length:Front  0-30mm,end 0-30 mm

8,Middle strip cut: Max 11 places strip

10,Max cut diameter: ￠8

11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc

12,The blade material: Tungsten carbide material blade

13,Driving way: 4 wheels drive

14,Showing the way: English LCD interface

15, 12 months warranty

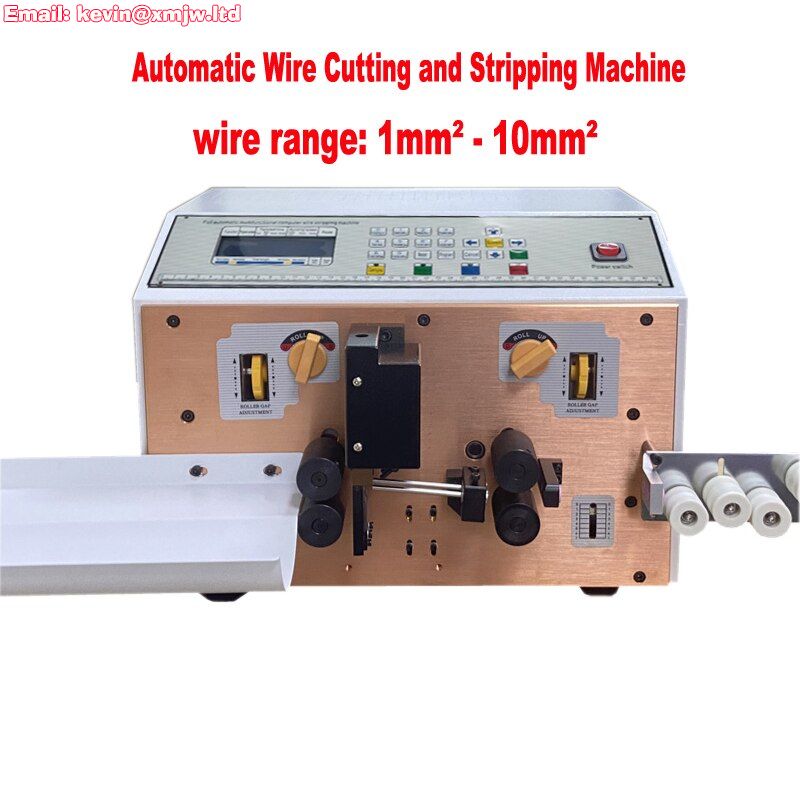

1. Model: SWT508-10mm²

2. Voltage: AC 110V/220V

3. Display mode: LCD liquid crystal display English interface

4. Power: 300(W)

5. Cutting length: 1-9999mm

6. Cutting tolerance: (0.2±0.002×L)mm

7. Cutting tolerance: correction

8. Stripping length:head 0-30mm, end 0-30mm

9. Middle stripping: 11 places  strip

10. Wire cross section:0.1～10mm²

11. Maximum diameter of tube: ￠10

12. Suitable wire stripping: PVC/PTFE/silicone cable/fiber glass wire

13. Blade material: High speed steel material blade

14. Drive: 4 wheel drive

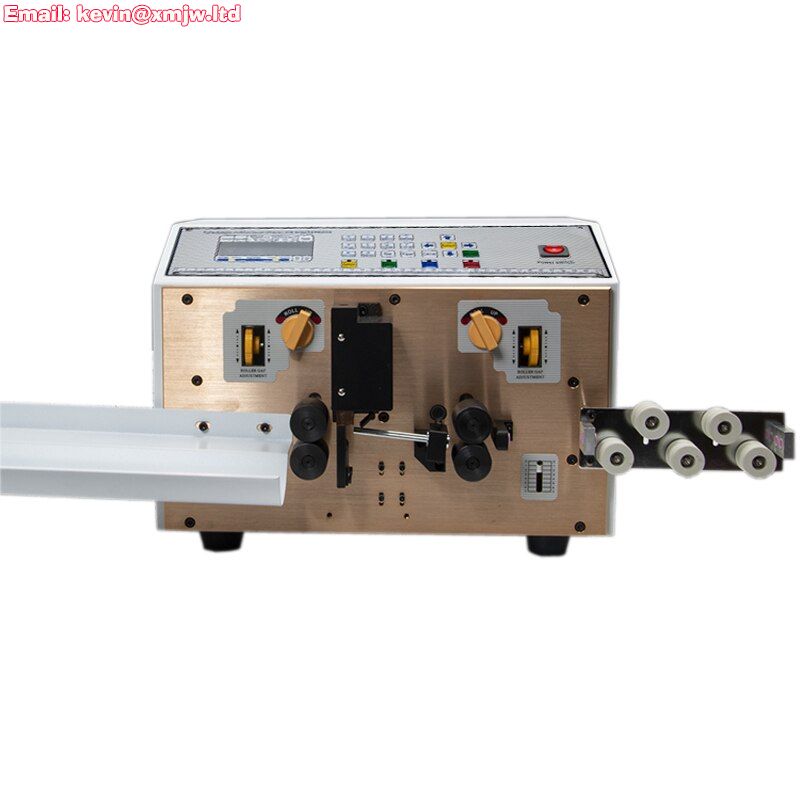

Automatic Full Computer Wire Stripping Machine to 6mm2

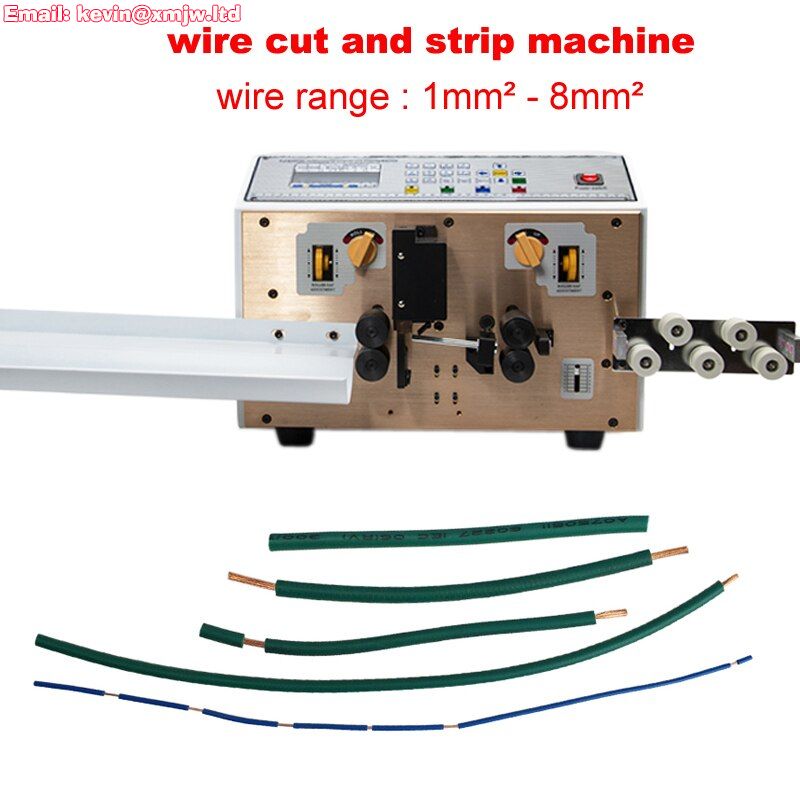

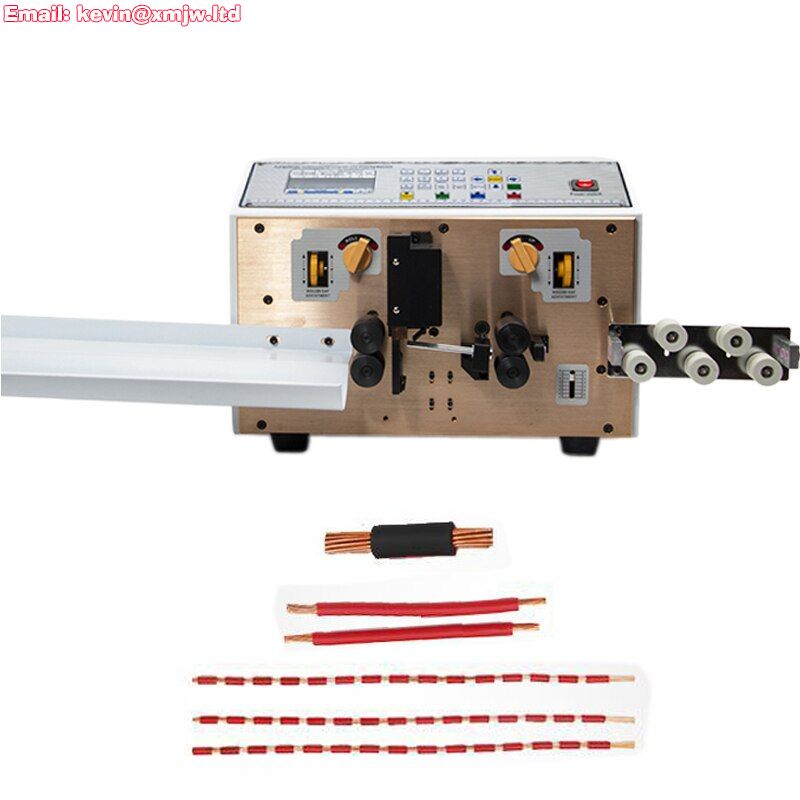

Computer Wire Stripping Machine Samples

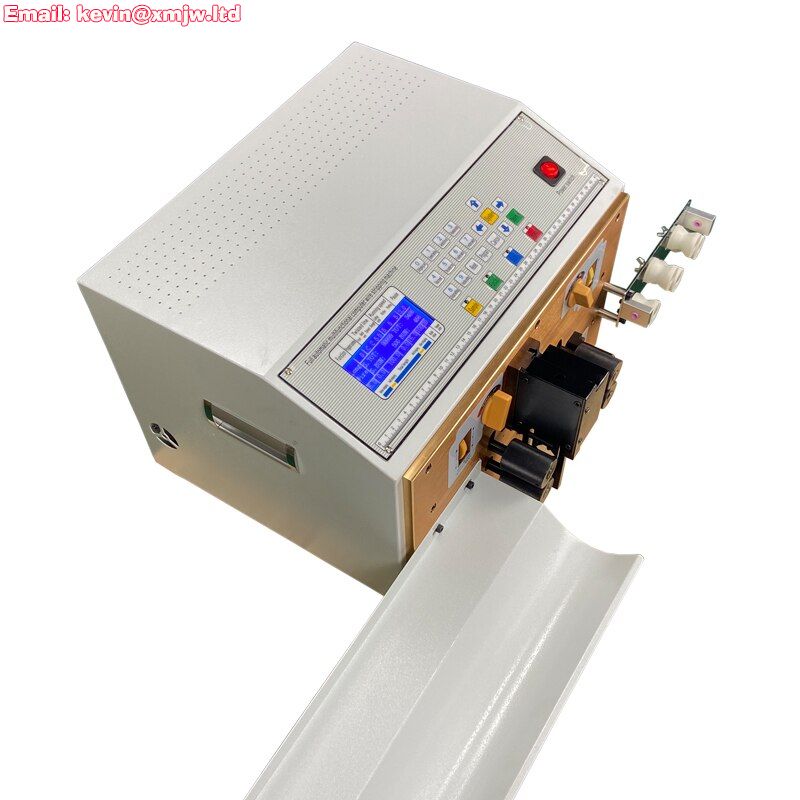

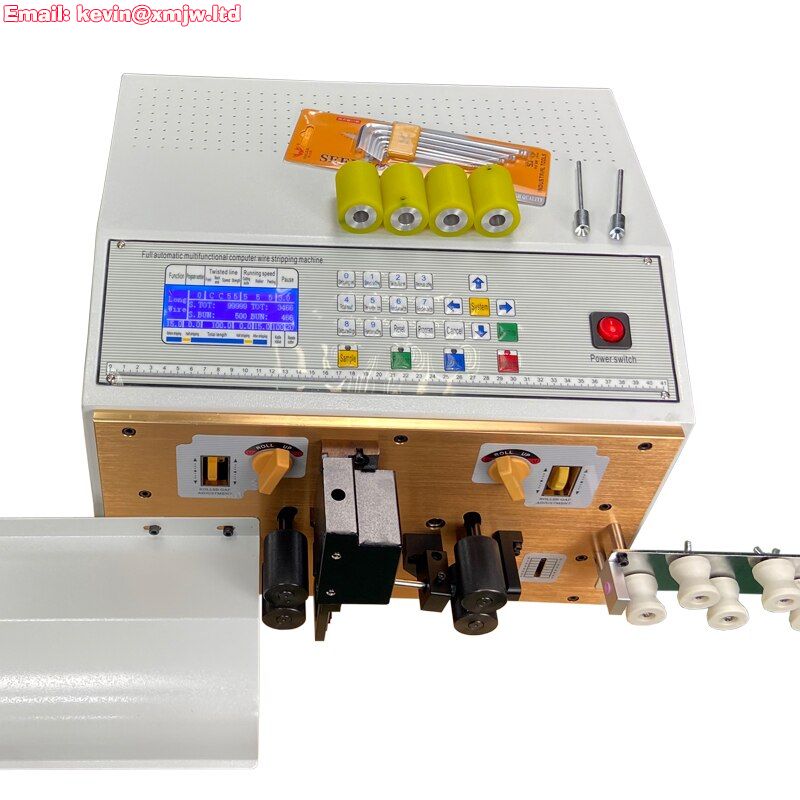

Automatic Wire Cutting and Stripping Machine Details

Wire Stripping Machine Workshop

Customer who order this wire stripping machine give good feedback
