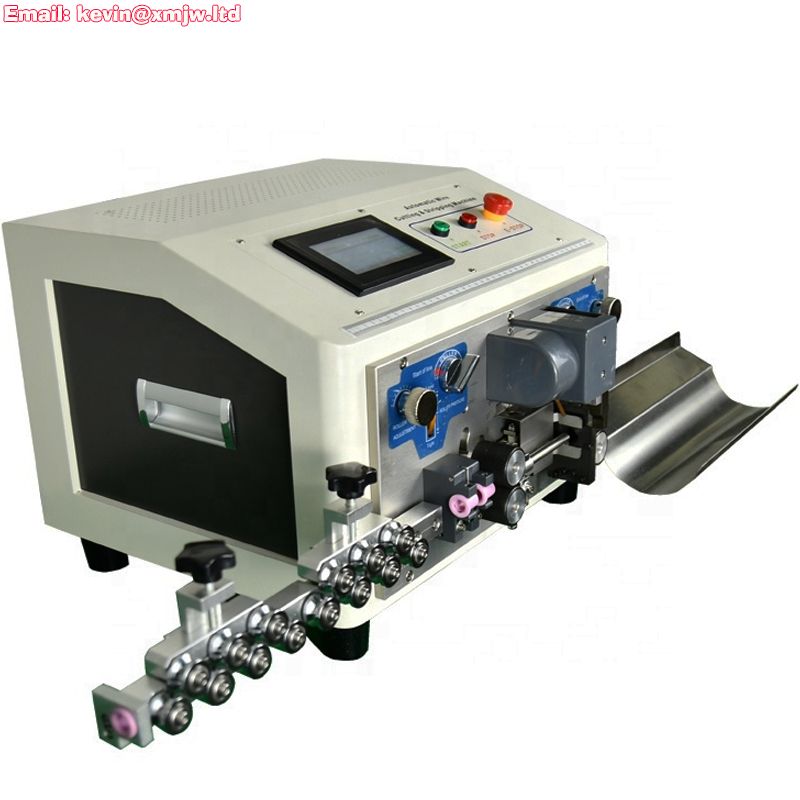

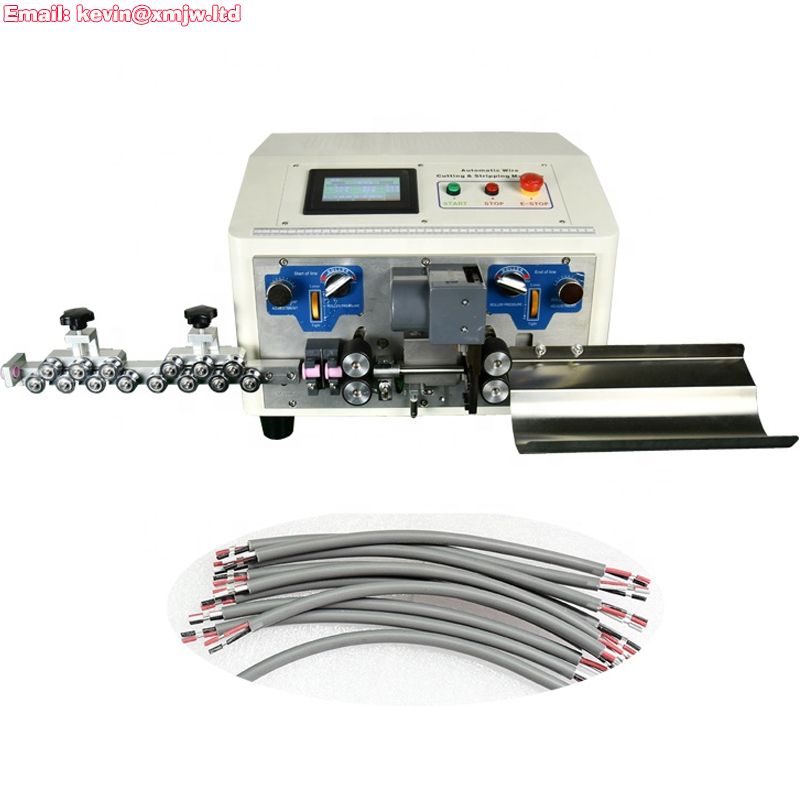

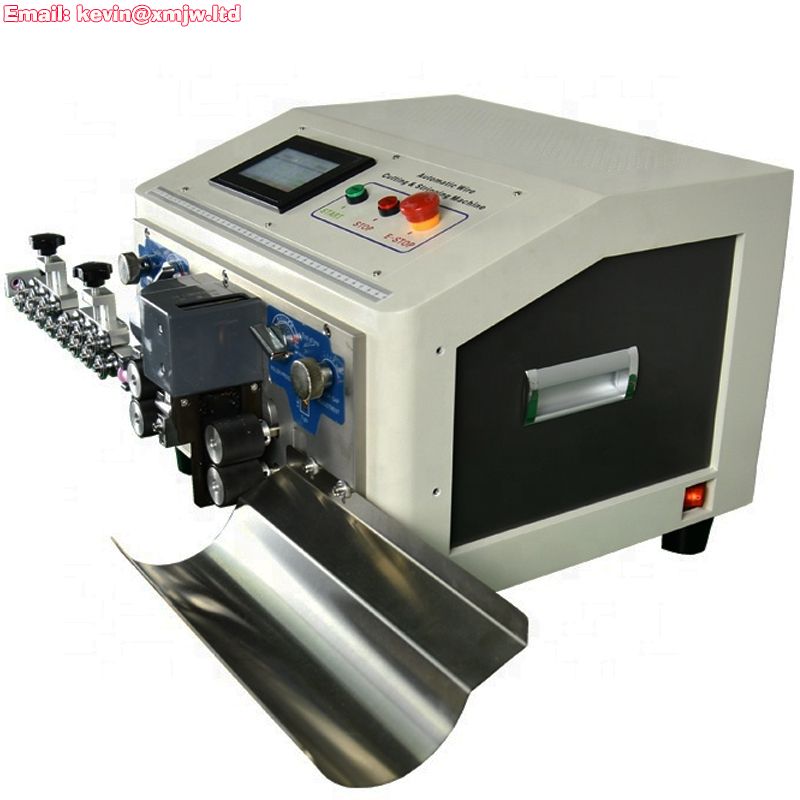

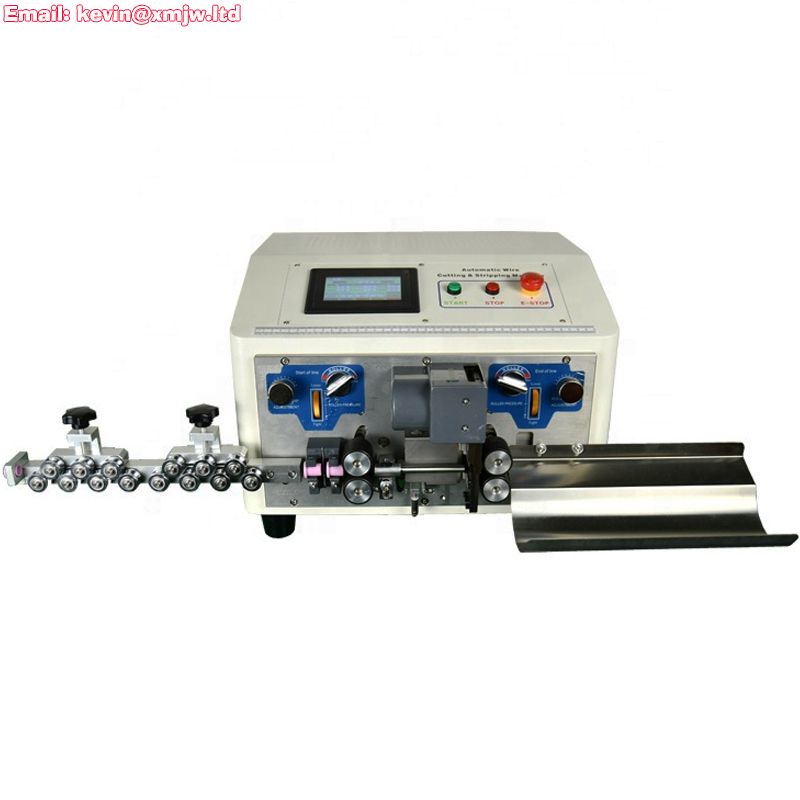

HS-BX905 Multi- Conductor Cable Cut and Strip for Inner Wire and Outer

Jacket Sheathed Wire Stripping Machine

Wire Peeling Stripping Cutting Machine - Computer Automatic Wire Strip

Automatic wire cutting and stripping machine can meet the extremely high requirements of wire harness processing in automobile and electric industries, as well as the requirements of smooth peeling edge, no scratch of core wire, no damage of wire skin surface, etc. It can effectively improve the processing quality of wire cutting & stripping and realize the automation and intelligence of the process.

Automatic wire cutting and stripping machine adopts advanced driving and motion control algorithm, which can effectively improve the positioning accuracy and repetition accuracy of the moving end. The machine is completely controlled by computer, and all the technological parameters can be set by the customer, so as to meet the requirements of different sizes of wire and cable cutting and stripping.

Product features

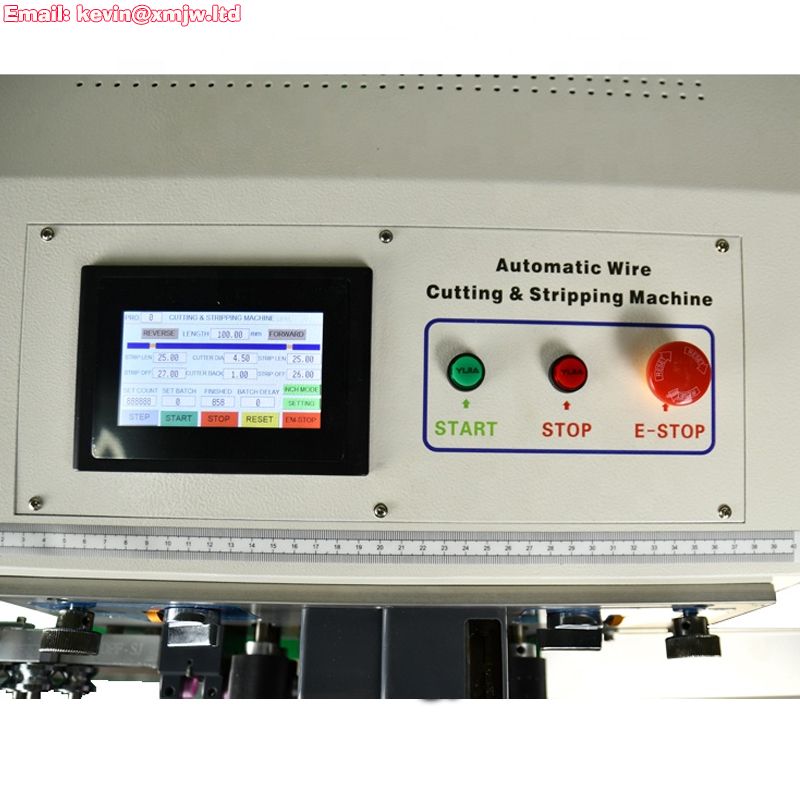

-Computer control, easy operation
-Stable performance and low noise
-Adopt stepper drive controller, servo tool holder, high speed and precision drive
-Widely used to process cables of automobile, electronics, electric power, energy and other industries

Model : HS-BX905

Wire Range : 2 Conductor - 4 Conductor / Max Outside Jacket Dia 6mm

Cutting Length : 0-99999mm

Stripping Lenght : Front 1 - 30mm End 1-30mm

Stripping Jacket Length : Front 1-250mm End 1-70mm

Wire Guide Size I.D : 4mm, 5mm , 6mm , 8mm

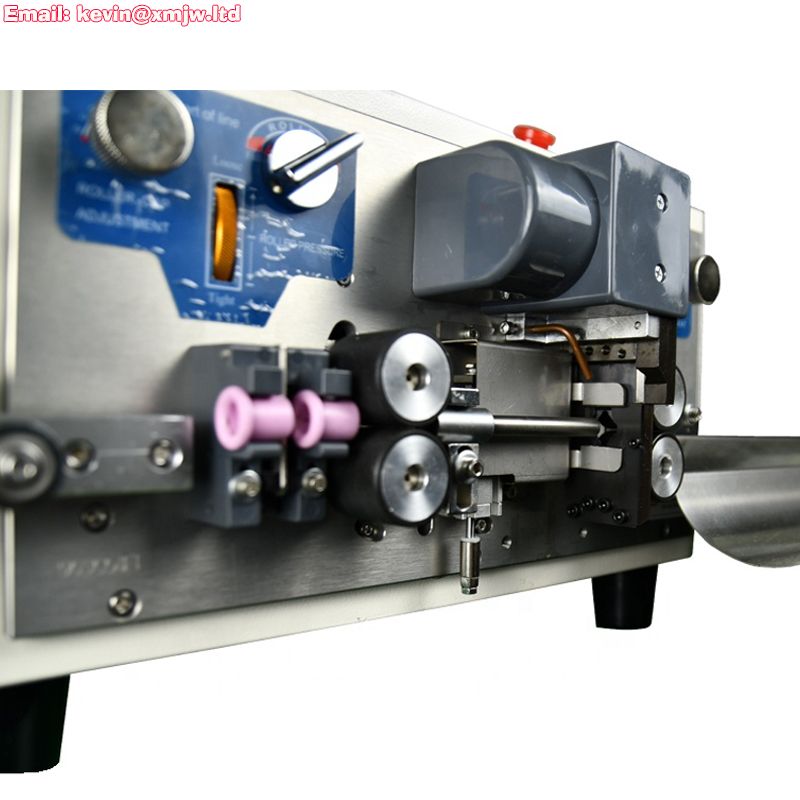

Stripping Drive Mode : 4 wheel drive

Blade : Tungsten Carbide

Speed Adjust : 1 -9

Tolerance : +-0.2% *Length


Application	electronic;Wire cutting;Peeling;stripping
Blade	tungsten carbide
Certification	CE
Cutting length	1-99999mm
is_customized	Yes
Model Number	HS-BX905
Name	wire cutting & stripping machine
Origin	Mainland China
Speed Adjust	1-9
Stripping drive mode	4 wheel drive
Stripping Inner Length	Front 1-30mm End 1-30mm
Stripping Jacket Length	Front 1-250mm End 1-70mm
Type	Male to Male
Wire Guide Size I.D	4mm;5mm;6mm;8mm
Wire Range	2 Conductor - 4 Conductor / Max Outside Jacket Dia 6mm
